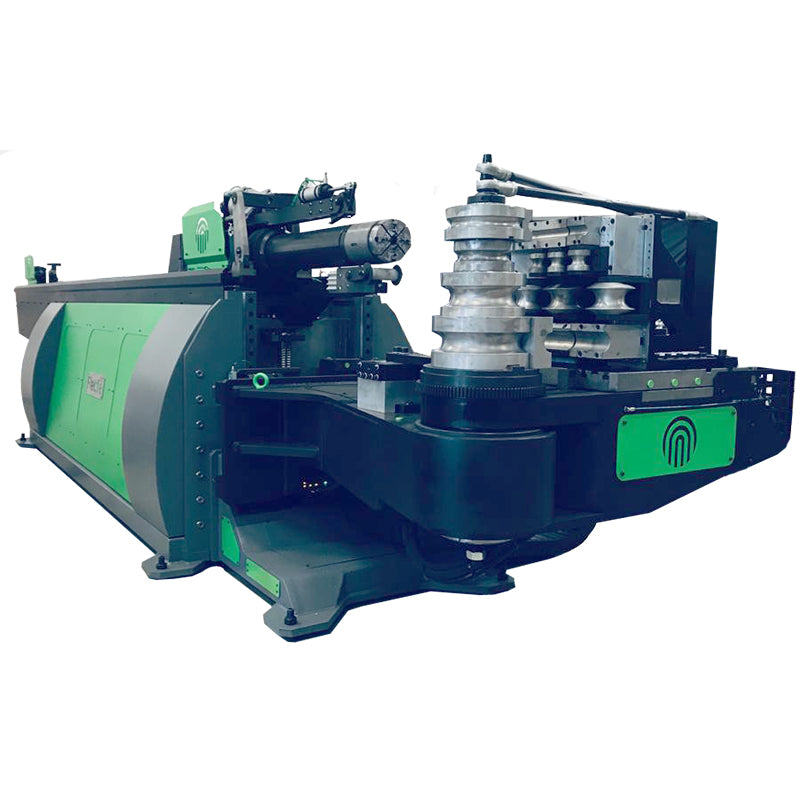

Flecte VEX 905 Tube Bending Machine – Hybrid CNC 5-Axis Tube Bender

The Flecte VEX 905 Tube Bending Machine is a hybrid CNC tube bender designed for precision, efficiency, and flexibility. Featuring 5 CNC-controlled axes and a single-stack bending system, this machine enhances bending capabilities for mandrel and roll bending applications. With a maximum tube capacity of 90mm, the VEX 905 is ideal for industries such as automotive, aerospace, industrial manufacturing, and furniture production.

Key Features of the VEX 905 CNC Tube Bender

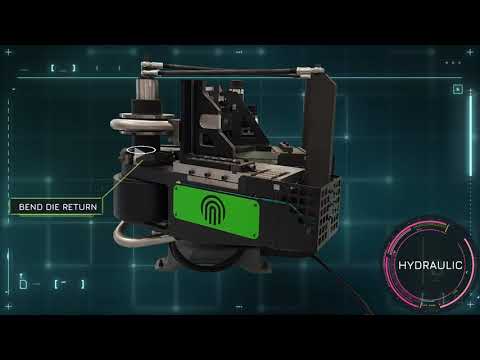

• Hybrid CNC Control System – Combines hydraulic and electric drive for superior performance.
• 5-Axis CNC Operation – Provides enhanced control for complex tube bending applications.
• Single-Stack Bending – Designed for efficient and reliable bending processes.
• Mandrel and Roll Bending Capabilities – Supports a variety of materials and bend requirements.
• High-Speed Tube Movement & Rotation – Ensures increased productivity with fast cycle times.
• User-Friendly CNC Interface – Streamlined programming for quick setup and operation.

Technical Specifications

Machine Dimensions & Weight

• Width (R=0): 72.84 inches
• Length: 283.47 inches
• Basement Width: 53.54 inches
• Height: 63.00 inches
• Weight: 13,228 lbs

Working Capabilities

• Useful Length Over Clamp: 157.48 inches
• Useful Length Over Mandrel: 248.03 inches
• Working Height: 50.59 inches
• Under-Head Length: 43.31 inches
• Bending Head Height: 20.08 inches
• Bending Head Radius: 7.87 inches
• Clamp Passage: 3.94 inches
• Maximum Bend Radius: 13.39 inches

Electrical & Performance Details

• Power Requirement: 25 kW, 400V
• Bending Speed: 65°/sec
• Tube Movement Speed: 31.5 inches/sec
• Tube Rotation Speed: 350°/sec
• Bending Precision: ±0.05°
• Tube Movement Precision: ±0.0020 inch
• Tube Rotation Precision: ±0.05°

Bending Capacity

• Steel Tube with Mandrel: Up to 3.54” x 0.16”
• Steel Tube Roll Bending: Up to 2.56” x 0.12”
• Aluminum Alloy Tube with Mandrel: Up to 3.94” x 0.12”
• Aluminum Alloy Tube Roll Bending: Up to 3.54” x 0.12”

Why Choose the Flecte VEX 905 Hybrid Tube Bender?

The VEX 905 builds on the success of the VEX 903 by incorporating 5 CNC axes, offering greater flexibility and control over the bending process. Whether producing automotive exhaust systems, aerospace tubing, or industrial frameworks, the VEX 905 delivers superior precision, reliability, and efficiency.

Contact us today to learn how the Flecte VEX 905 Tube Bending Machine can optimize your production!
