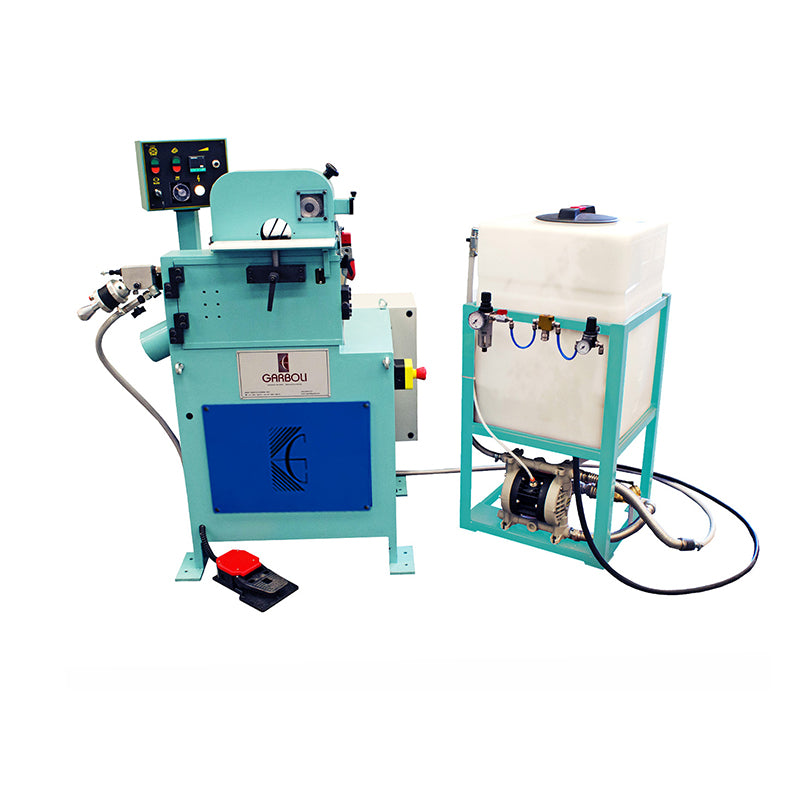

Garboli LPC 160 Mirror Tube Polishing Machine

D = 5-50 mm     R1 min. 80 mm       S = 622 mm       Disc = 1,1 kw

(2" max)             R2 = 1,5 x Ø mm     L = 30 mm         Belts =  3.0 kw

The Garboli LPC 160 Mirror is a high-performance orbital belt buffing machine designed to deliver mirror-like finishes on both straight and bent tubes. Capable of polishing round, oval, and irregular sections of tubes made from stainless steel, steel, brass, and other metals, the LPC 160 Mirror is ideal for applications where superior gloss and shine are essential.

Key Features:

• Mirror Polishing Capability: Specifically designed for achieving mirror finishes, the LPC 160 Mirror delivers exceptional shine and surface quality, perfect for high-end applications.

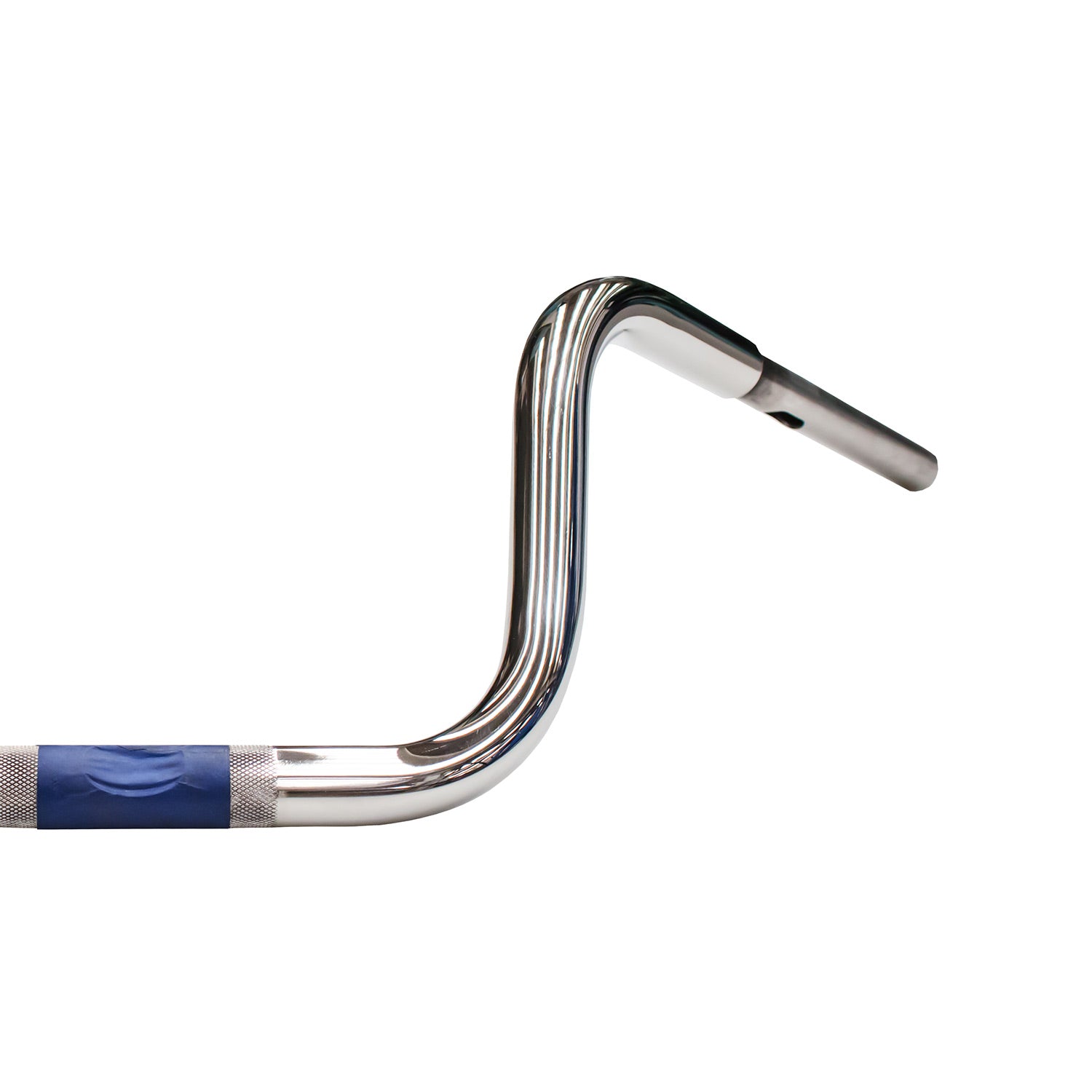

• Versatile Tube Processing: Suitable for straight and bent tubes with round, oval, and irregular cross-sections, making it a highly adaptable solution for various tube shapes.
• Material Compatibility: Capable of polishing tubes made from stainless steel, steel, brass, and other metals, the LPC 160 Mirror is ideal for industries that require pristine finishes on a range of materials.
• Diameter Range: Efficiently polishes tubes with diameters from 5 mm to 50 mm, covering a wide range of sizes for both small and large tubes.

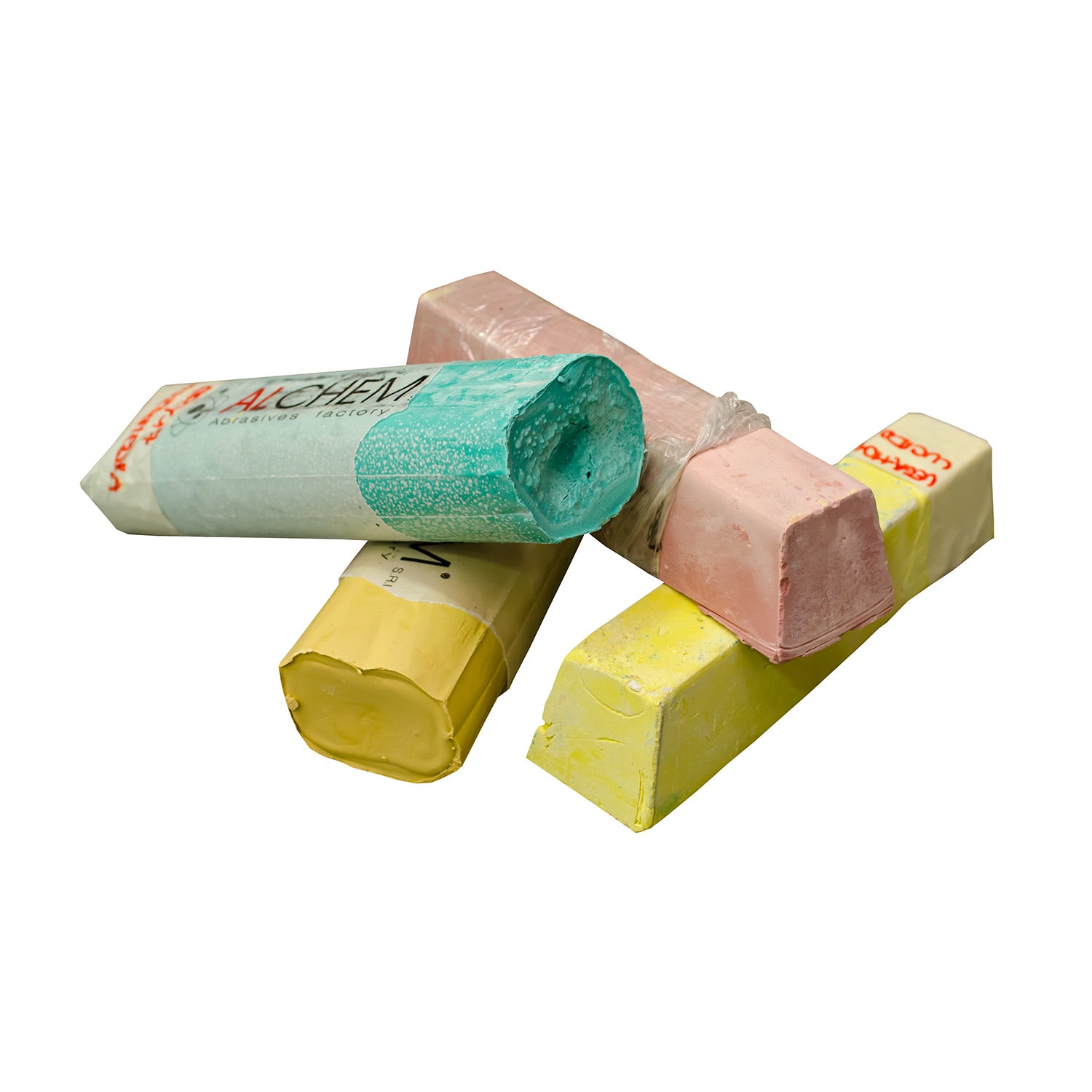

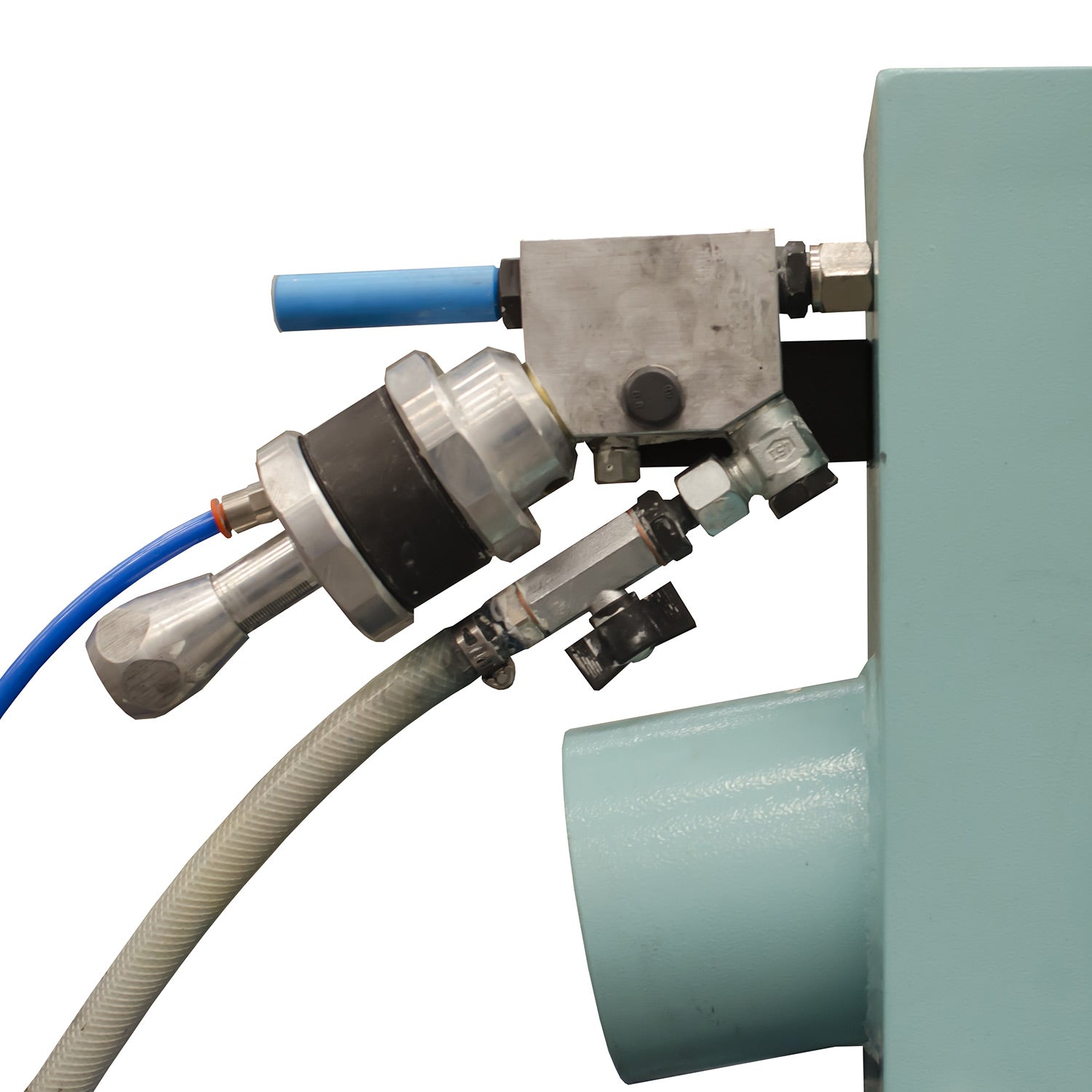

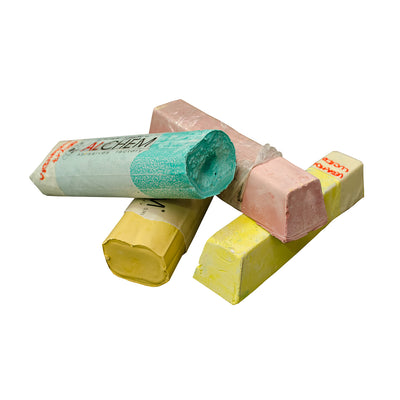

• Liquid Polishing Paste Dispenser: Available with an optional liquid polishing paste dispenser for enhanced mirror polishing results, ensuring a consistent, high-quality finish.
• Grinding and Surface Preparation: When used with standard abrasive belts, the LPC 160 Mirror can also be employed for grinding and surface preparation, making it a versatile solution for multi-step polishing processes.
• Inverter Technology: Comes complete with an Inverter device for optimal control of mirror buffing, ensuring a smooth and even finish every time.

Benefits:

• Exceptional Mirror Finish: Achieve high-gloss, mirror-like surfaces with the LPC 160 Mirror, making it ideal for high-end applications where aesthetic quality is critical.
• Multi-Functionality: Beyond mirror polishing, the machine can also perform grinding and surface preparation, making it a versatile addition to your production line.
• Improved Efficiency: With the liquid polishing paste dispenser and Inverter device, the LPC 160 Mirror delivers precise control, reducing finishing times while maintaining consistent results.
• Cost-Effective: The ability to perform both mirror buffing and surface preparation in one machine reduces the need for multiple systems, lowering operational costs and improving workflow efficiency.

The Garboli LPC 160 Mirror is the ideal choice for achieving flawless, mirror-like finishes on tubes across a variety of materials. With its advanced features and customizable options, it's the go-to solution for industries requiring the highest quality surface finishes.

Optional Equipment:

• Liquid polishing paste dispenser for enhanced finishes
• Custom abrasive belts for different polishing needs
• Advanced automation features for increased production efficiency
