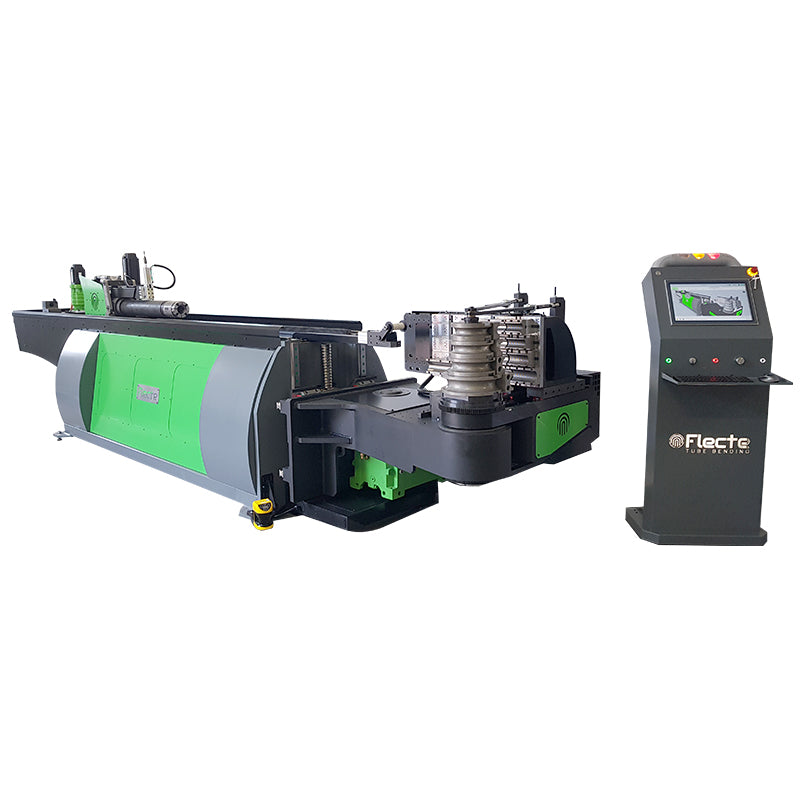

Flecte VEX659 – High-Performance Electric CNC Tube Bender

The Flecte VEX659 is a cutting-edge electric CNC tube bending machine designed for precision tube bending in high-demand industries. Manufactured in Italy, this 9-axis CNC tube bender delivers exceptional accuracy, repeatability, and energy efficiency compared to hydraulic alternatives.

Key Features:

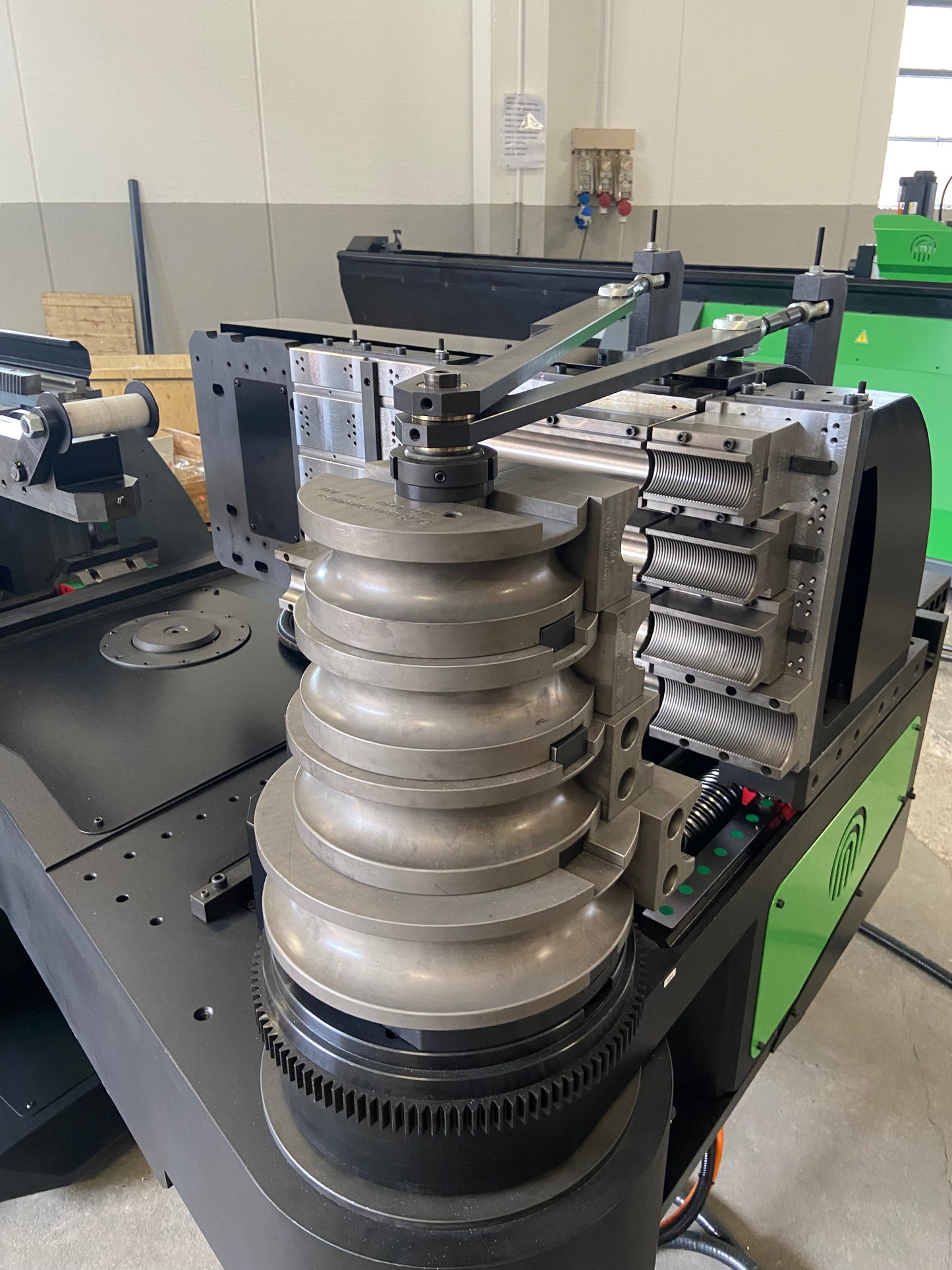

• Fully Electric Tube Bending – Multi-stack system with 9 CNC axes for mandrel and roll bending.
• Italian Engineering Excellence – Built for durability, efficiency, and superior performance.
• High Precision and Repeatability – Perfect for automotive, aerospace, and industrial metal fabrication.
• Eco-Friendly & Energy Efficient – Reduced power consumption with no hydraulic fluids required.
• Intuitive CNC Control – Easy programming for complex tube bending geometries.
• Versatile Tube Bending – Handles a variety of tube materials, diameters, and wall thicknesses.

Technical Specifications:

Capacity:

• Maximum Tube Diameter: 65mm
• Maximum Bend Radius: 13.4 inch

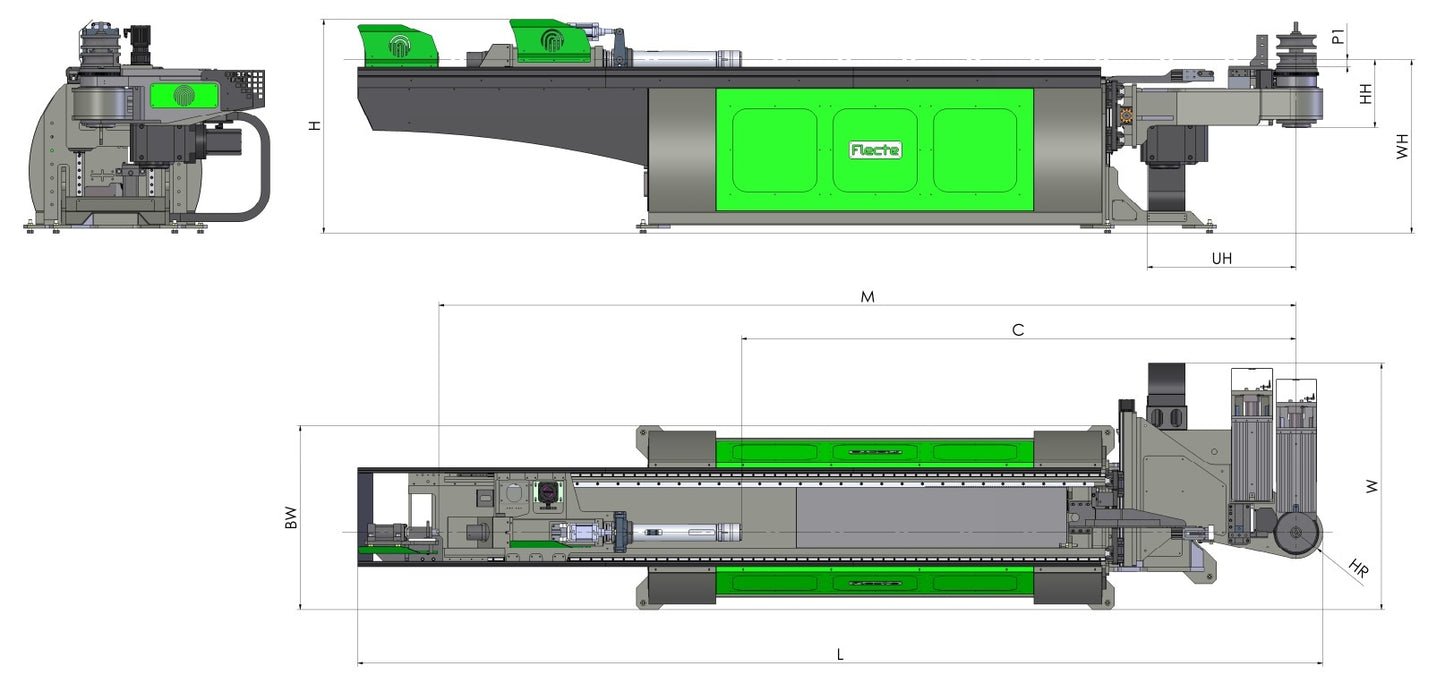

Machine Dimensions:

• Width at R=0: 70.9 inch (W)
• Length: 283.5 inch (L)
• Basement Width: 55.1 inch (BW)
• Height: 74.8 inch (H)
• Weight: 13,228 lbs

Work Data:

• Useful Length Over the Clamp: 157.5 inch (C)
• Useful Length Over the Mandrel: 248 inch (M)
• Working Height: 51.2 inch (WH)
• Under-Head Length: 43.3 inch (UH)
• Bending Head Height: 20.5 inch (HH)
• Bending Head Radius: 7.9 inch (HR)
• P1 Center: 2.75 inch (P1)
• Clamp Passage: 3.7 inch

Electrical Specifications:

• Maximum Power: 30 kW
• Voltage: 400 V

Axis Velocity:

• Bending: 95°/sec
• Tube Movement: 36.6 inch/sec
• Tube Rotation: 350°/sec
• Tube Offset: 19.68 inch/sec
• Tube Stack: 3.93 inch/sec
• Tube Close: 3.93 inch/sec
• Following Block: 21.65 inch/sec
• Mandrel: 13.77 inch/sec

Precision:

• Bending: 0.05°
• Tube Movement: 0.0020 inch
• Tube Rotation: 0.05°
• Tube Offset: 0.0020 inch
• Tube Stack: 0.0020 inch
• Tube Close: 0.0020 inch
• Following Block: 0.0020 inch
• Mandrel: 0.0020 inch

Bend Capacity:

• Max Iron Tube with Mandrel: 2.56 x 0.16 inch
• Max Iron Tube Roll Bending: 2.36 x 0.12 inch
• Max Aluminum Alloy Tube with Mandrel: 3.15 x 0.12 inch
• Max Aluminum Alloy Tube Roll Bending: 2.56 x 0.12 inch

Why Choose the Flecte VEX659?

The Flecte VEX659 is the ideal solution for businesses looking to improve tube bending efficiency with state-of-the-art CNC technology. Whether you're fabricating industrial tubing, furniture, or aerospace components, this electric CNC tube bender offers unmatched performance, precision, and energy efficiency.

Upgrade your production line with the Flecte VEX659 Electric CNC Tube Bender – combining innovation, accuracy, and productivity.

Contact us today for pricing, availability, and expert consultation!
