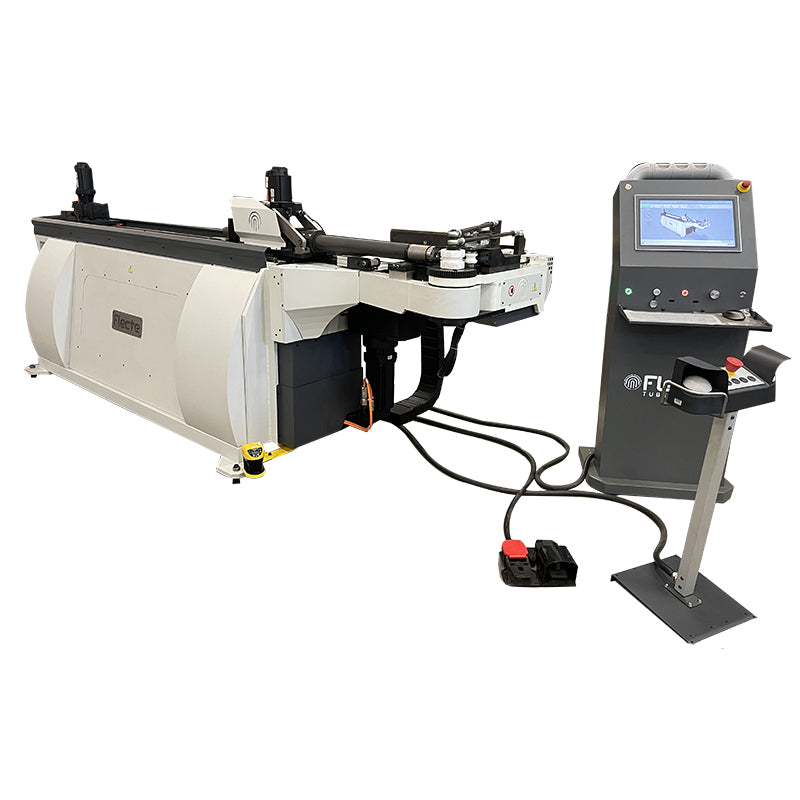

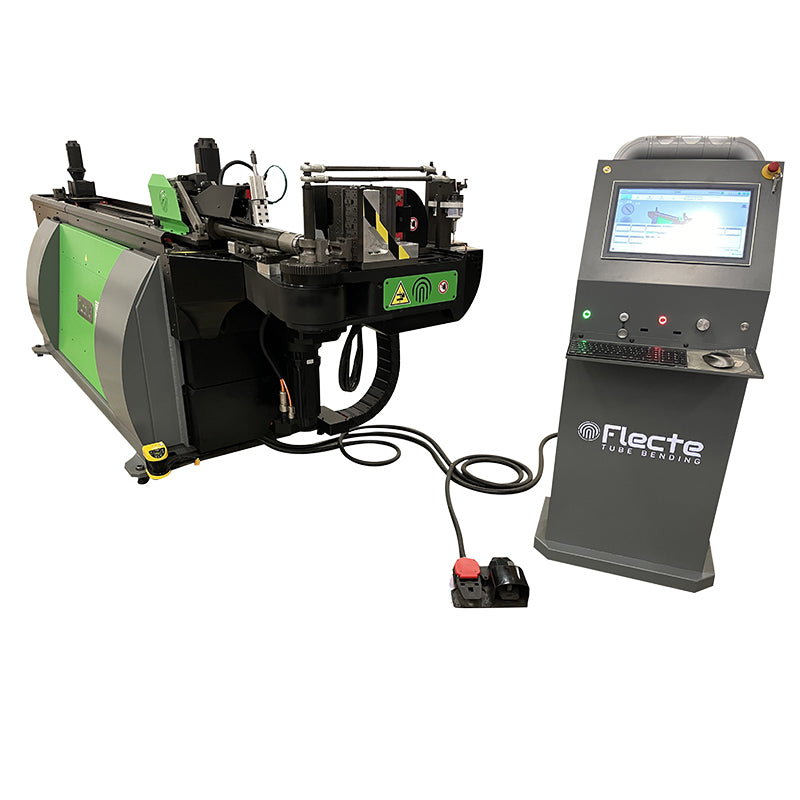

Flecte VEX459 – Precision Electric CNC Tube Bender

The Flecte VEX459 is a state-of-the-art electric CNC tube bending machine designed for high-precision tube bending in industrial applications. Manufactured in Italy, this advanced tube bending machine ensures superior accuracy, repeatability, and efficiency while reducing operational costs compared to hydraulic alternatives.

Key Features:

• Fully Electric Tube Bending – Multiple stacks with 9 CNC axes for a variety of tube profiles using mandrel and roll bending.
• Italian Engineering Excellence – Designed and manufactured in Italy, ensuring high performance and durability.
• High Precision and Repeatability – Ideal for industries requiring tight tolerances, such as automotive, aerospace, and furniture manufacturing.
• Energy-Efficient and Eco-Friendly – Electric operation reduces energy consumption and eliminates hydraulic fluid waste.
• User-Friendly Interface – Intuitive touchscreen control for easy setup and operation.
• Versatile Tube Bending Capabilities – Handles a variety of tube materials and thicknesses, supporting complex geometries.

Technical Specifications:

Capacity:

• Maximum Tube Diameter: 45mm
• Maximum Bend Radius: 10.4 inch

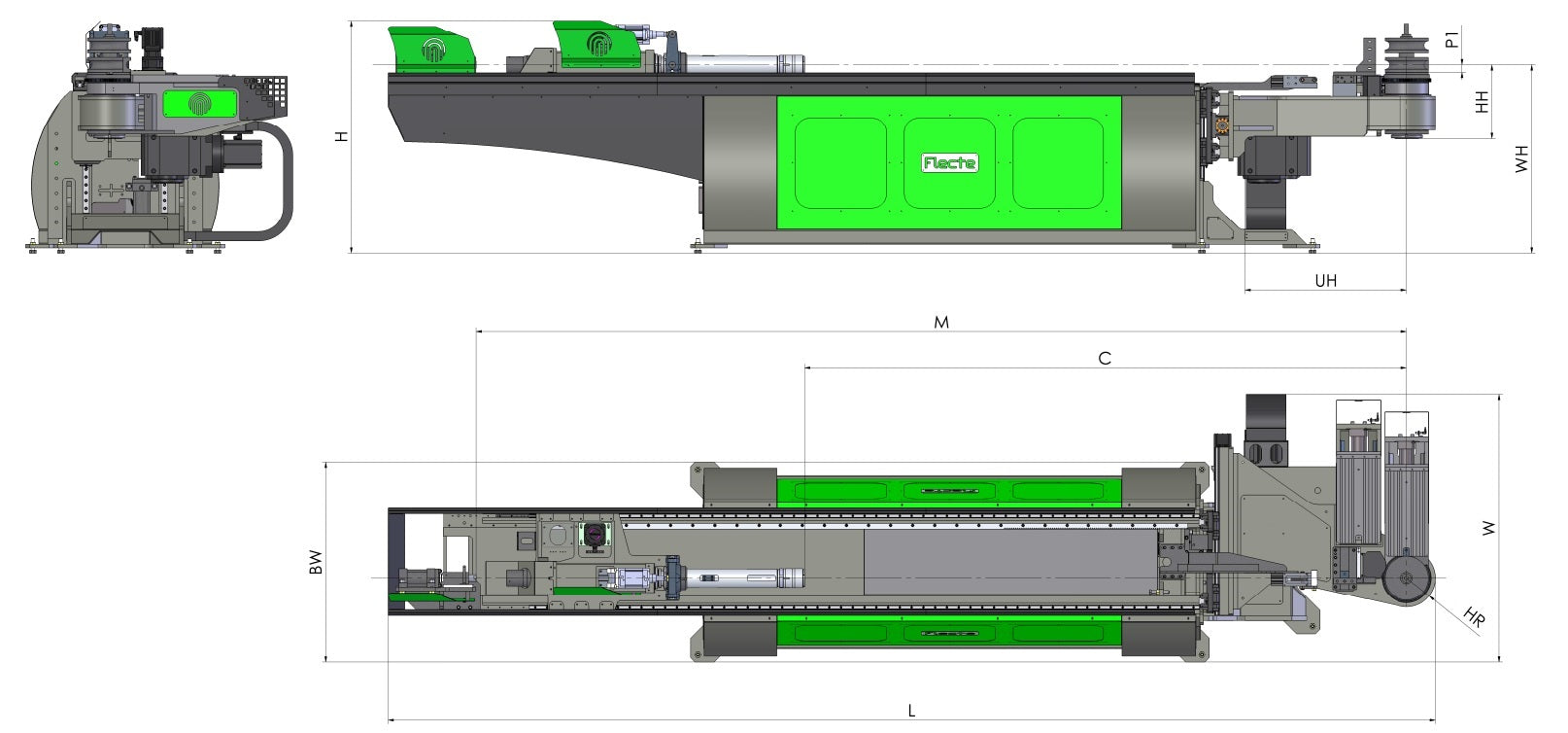

Machine Dimensions:

• Width at R=0: 53.9 inch (W)
• Length: 214.6 inch (L)
• Basement Width: 47.2 inch (BW)
• Height: 66.9 inch (H)
• Weight: 5512 lbs

Work Data:

• Useful Length Over the Clamp: 118.1 inch (C)
• Useful Length Over the Mandrel: 181.1 inch (M)
• Working Height: 49 inch (WH)
• Under-Head Length: 39.4 inch (UH)
• Bending Head Height: 11 inch (HH)
• Bending Head Radius: 4.9 inch (HR)
• P1 Center: 1.6 inch (P1)
• Clamp Passage: 1.8 inch

Electrical Specifications:

• Maximum Power: 20 kW
• Voltage: 400 V

Axis Velocity:

• Bending: 200°/sec
• Tube Movement: 39.4 inch/sec
• Tube Rotation: 375°/sec
• Tube Offset: 11.8 inch/sec
• Tube Stack: 3.9 inch/sec
• Tube Close: 3.9 inch/sec
• Following Block: 19.7 inch/sec
• Mandrel: 11 inch/sec

Precision:

• Bending: 0.05°
• Tube Movement: 0.0020 inch
• Tube Rotation: 0.05°
• Tube Offset: 0.0020 inch
• Tube Stack: 0.0020 inch
• Tube Close: 0.0020 inch
• Following Block: 0.0020 inch
• Mandrel: 0.0020 inch

Bend Capacity:

• Max Iron Tube with Mandrel: 1.77 x 0.12 inch
• Max Iron Tube Roll Bending: 1.57 x 0.12 inch
• Max Aluminum Alloy Tube with Mandrel: 2.36 x 0.09 inch
• Max Aluminum Alloy Tube Roll Bending: 1.97 x 0.08 inch

Why Choose the Flecte VEX459?

The Flecte VEX459 offers a cost-effective and high-performance solution for businesses looking to enhance their tube fabrication processes. Whether you're producing precision components for manufacturing, construction, or custom fabrication, this CNC tube bender delivers the speed, efficiency, and quality required in today’s competitive market.

Upgrade your production line with the Flecte VEX459 Electric CNC Tube Bender – the ultimate solution for precision tube bending.

Contact us today to learn more about pricing, specifications, and availability!
