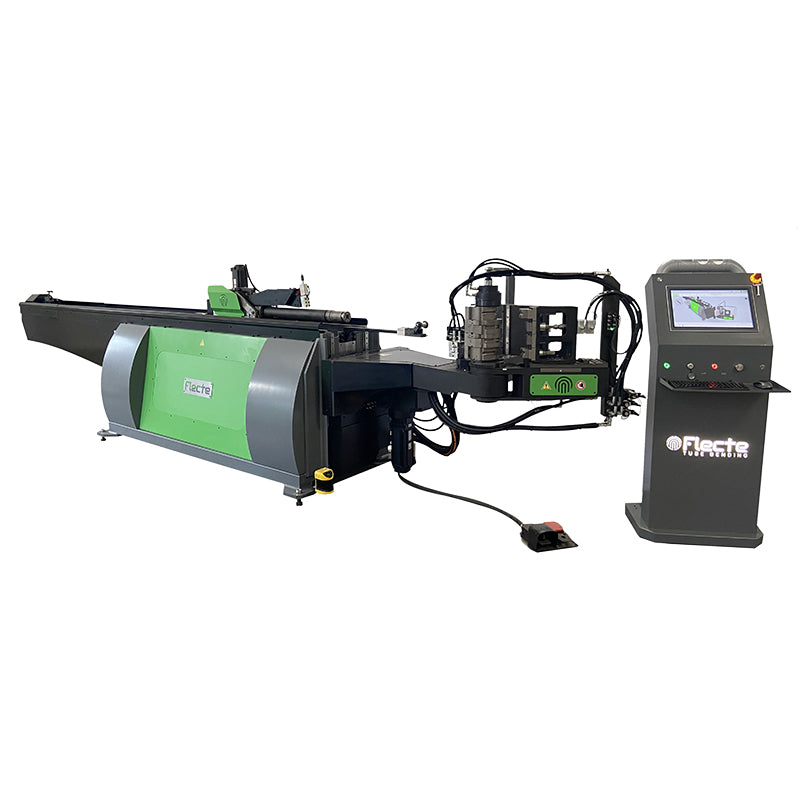

Flecte VEX457 – Precision Electric CNC Tube Bender

The Flecte VEX457 is a cutting-edge electric CNC tube bending machine engineered for precision tube bending across a variety of applications. Manufactured in Italy, this 7-axis CNC tube bender offers exceptional accuracy, repeatability, and energy efficiency compared to hydraulic alternatives.

Key Features:

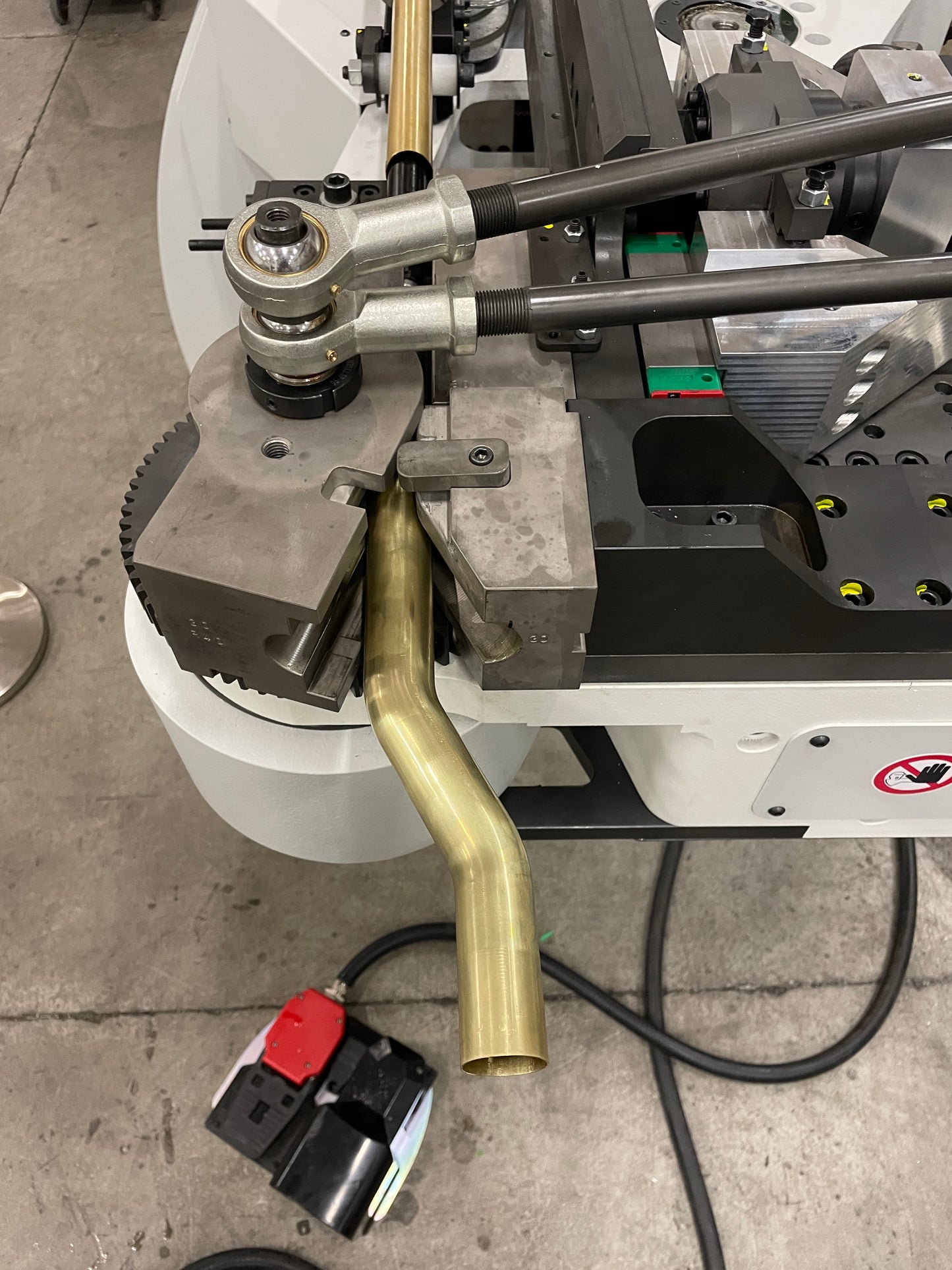

• Fully Electric Tube Bending – Single-stack system with 7 CNC axes for mandrel and roll bending.
• Italian Engineering Excellence – Built for durability and superior performance in demanding industries.
• High Precision and Repeatability – Ideal for automotive, aerospace, and metal fabrication sectors.
• Eco-Friendly & Energy Efficient – Reduced power consumption with no hydraulic fluids required.
• Intuitive CNC Control – Easy programming for complex tube bending geometries.
• Versatile Tube Bending – Handles a variety of tube materials, diameters, and wall thicknesses.

Technical Specifications:

Capacity:

• Maximum Tube Diameter: 45mm
• Maximum Bend Radius: 10.4 inch

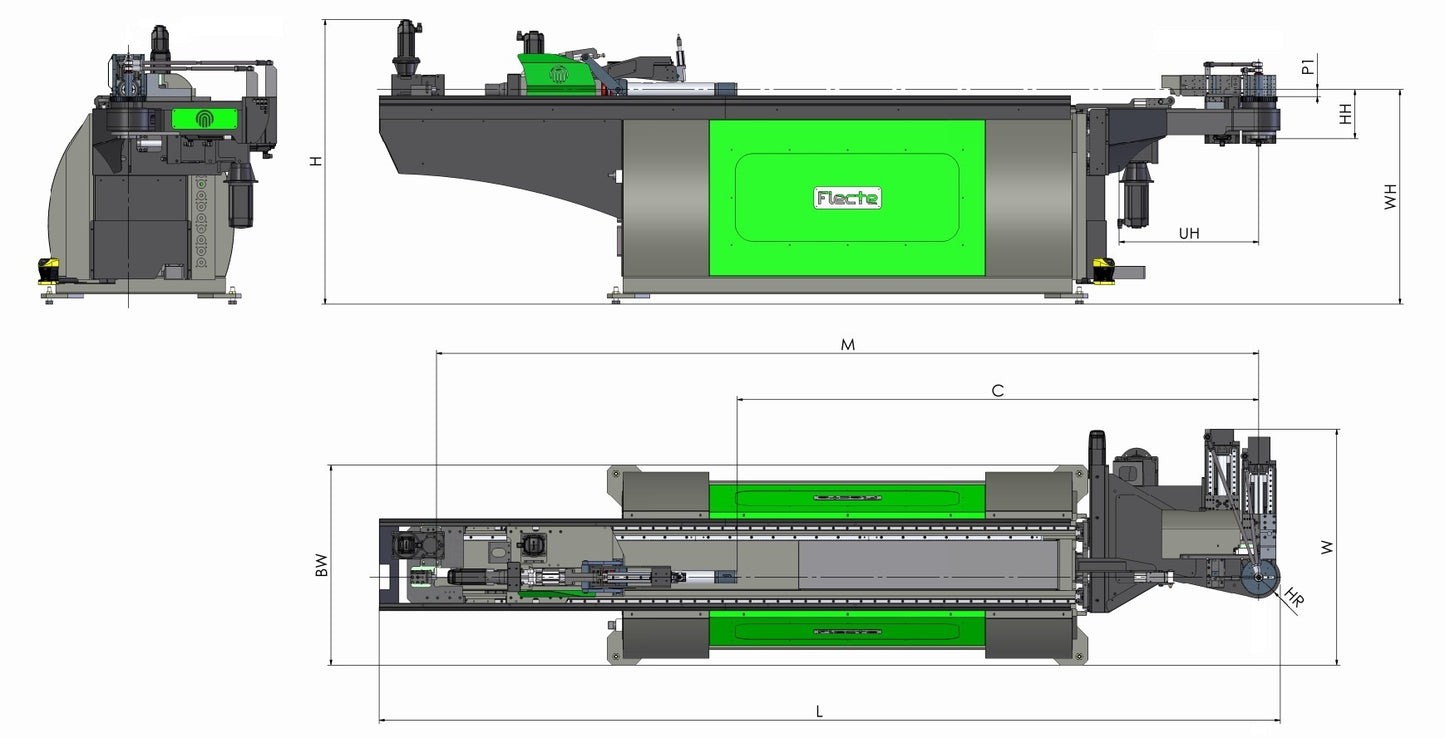

Machine Dimensions:

• Width at R=0: 53.9 inch (W)
• Length: 214.6 inch (L)
• Basement Width: 47.2 inch (BW)
• Height: 66.9 inch (H)
• Weight: 5512 lbs

Work Data:

• Useful Length Over the Clamp: 118.1 inch (C)
• Useful Length Over the Mandrel: 181.1 inch (M)
• Working Height: 49 inch (WH)
• Under-Head Length: 39.4 inch (UH)
• Bending Head Height: 11 inch (HH)
• Bending Head Radius: 4.9 inch (HR)
• P1 Center: 1.6 inch (P1)
• Clamp Passage: 1.8 inch

Electrical Specifications:

• Maximum Power: 18 kW
• Voltage: 400 V

Axis Velocity:

• Bending: 200°/sec
• Tube Movement: 39.4 inch/sec
• Tube Rotation: 375°/sec
• Tube Close: 3.9 inch/sec
• Following Block: 19.7 inch/sec
• Mandrel: 11 inch/sec

Precision:

• Bending: 0.05°
• Tube Movement: 0.0020 inch
• Tube Rotation: 0.05°
• Tube Close: 0.0020 inch
• Following Block: 0.0020 inch
• Mandrel: 0.0020 inch

Bend Capacity:

• Max Iron Tube with Mandrel: 1.77 x 0.07 inch
• Max Iron Tube Roll Bending: 1.57 x 0.11 inch
• Max Aluminum Alloy Tube with Mandrel: 2.36 x 0.07 inch
• Max Aluminum Alloy Tube Roll Bending: 2 x 0.07 inch

Why Choose the Flecte VEX457?

The Flecte VEX457 is an ideal solution for businesses looking to enhance tube bending efficiency with cutting-edge CNC technology. Whether you're fabricating industrial tubing, furniture, or aerospace components, this electric CNC tube bender delivers superior performance with lower operating costs.

Upgrade your fabrication capabilities with the Flecte VEX457 Electric CNC Tube Bender – the perfect blend of innovation, precision, and efficiency.

Contact us today for pricing, availability, and expert consultation!
