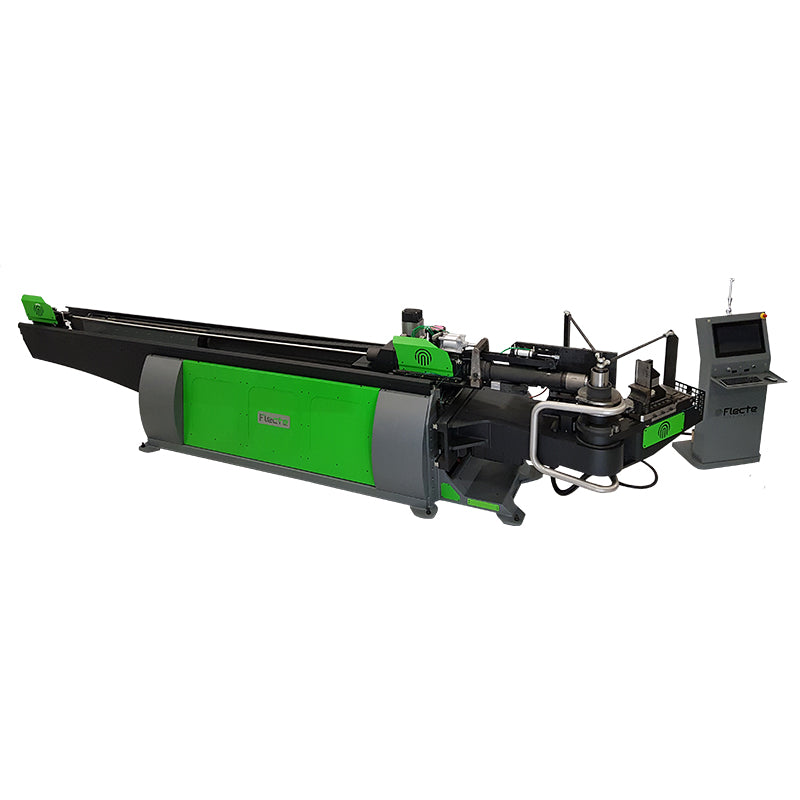

Flecte VEX 903 Tube Bending Machine – Hybrid CNC Tube Bender

The Flecte VEX 903 Tube Bending Machine is a hybrid CNC tube bender designed for precision, efficiency, and versatility. Featuring 3 CNC-controlled axes and a single-stack bending system, this machine is ideal for processing a variety of tube profiles with mandrel or roll bending. With a maximum tube capacity of 90mm, the VEX 903 is perfect for industries such as automotive, aerospace, industrial manufacturing, and furniture production.

Key Features of the VEX 903 CNC Tube Bender

• Hybrid CNC Control System – Combines hydraulic and electric drive for optimal performance and efficiency.
• 3-Axis CNC Operation – Ensures high accuracy and repeatability in tube bending applications.
• Single-Stack Bending – Designed for straightforward and reliable bending processes.
• Mandrel and Roll Bending Capabilities – Handles a range of materials and complex bending requirements.
• High-Speed Tube Movement & Rotation – Enhances productivity with fast cycle times.
• User-Friendly CNC Interface – Intuitive programming for quick setup and operation.

Technical Specifications

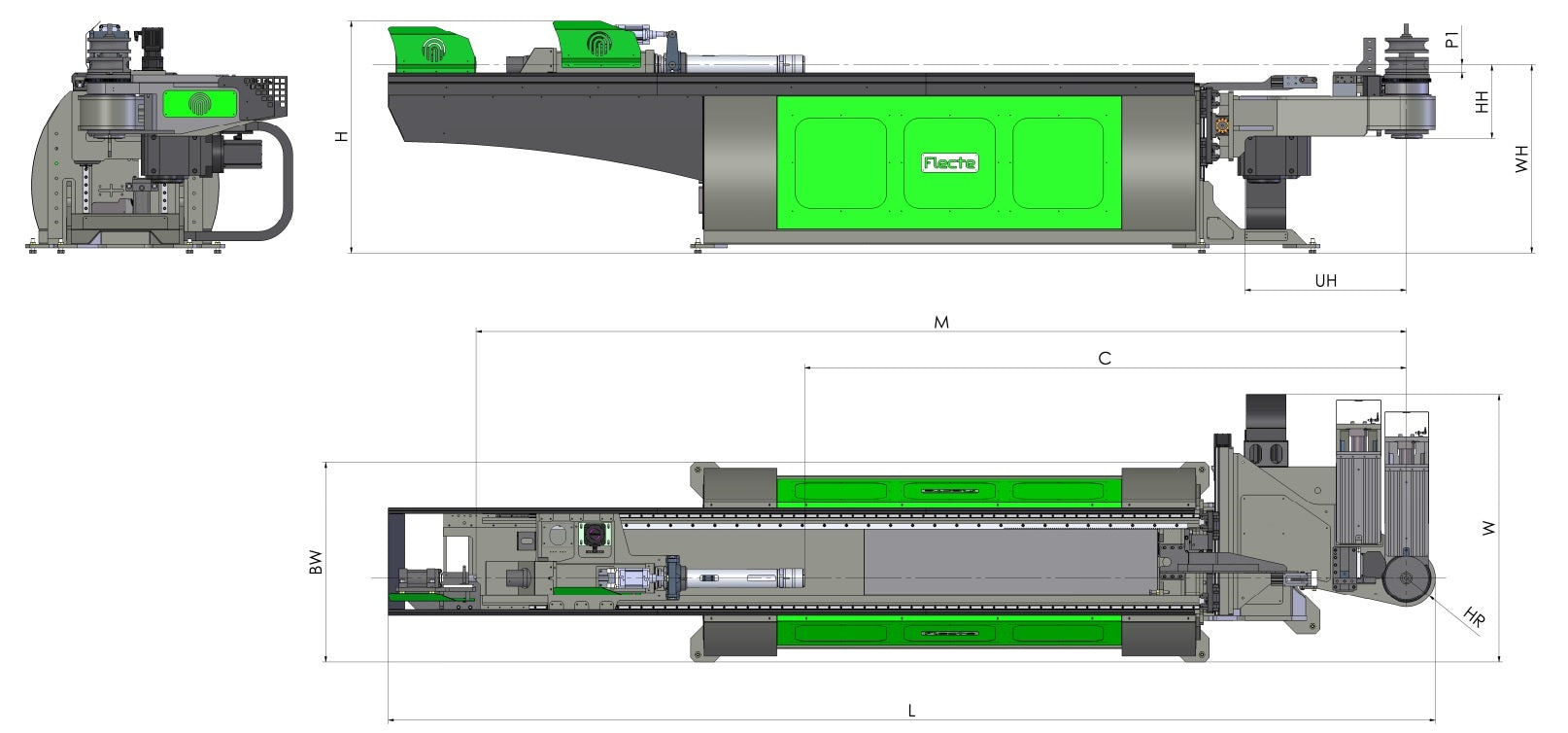

Machine Dimensions & Weight

• Width (R=0): 72.84 inches
• Length: 283.47 inches
• Basement Width: 53.54 inches
• Height: 63.00 inches
• Weight: 13,228 lbs

Working Capabilities

• Useful Length Over Clamp: 157.48 inches
• Useful Length Over Mandrel: 248.03 inches
• Working Height: 50.59 inches
• Under-Head Length: 43.31 inches
• Bending Head Height: 20.08 inches
• Bending Head Radius: 7.87 inches
• Clamp Passage: 3.94 inches
• Maximum Bend Radius: 13.39 inches

Electrical & Performance Details

• Power Requirement: 25 kW, 400V
• Bending Speed: 65°/sec
• Tube Movement Speed: 31.5 inches/sec
• Tube Rotation Speed: 350°/sec
• Bending Precision: ±0.05°
• Tube Movement Precision: ±0.0020 inch
• Tube Rotation Precision: ±0.05°

Bending Capacity

• Steel Tube with Mandrel: Up to 3.54” x 0.16”
• Steel Tube Roll Bending: Up to 2.56” x 0.12”
• Aluminum Alloy Tube with Mandrel: Up to 3.94” x 0.12”
• Aluminum Alloy Tube Roll Bending: Up to 3.54” x 0.12”

Why Choose the Flecte VEX 903 Hybrid Tube Bender?

The VEX 903 combines the efficiency of an electric system with the power of hydraulic bending, making it an ideal solution for manufacturers seeking reliable, precise, and cost-effective tube bending. Whether producing automotive components, industrial piping, or aerospace structures, the VEX 903 delivers consistent results with high accuracy and speed.

Contact us today to learn how the Flecte VEX 903 Tube Bending Machine can enhance your production efficiency!
