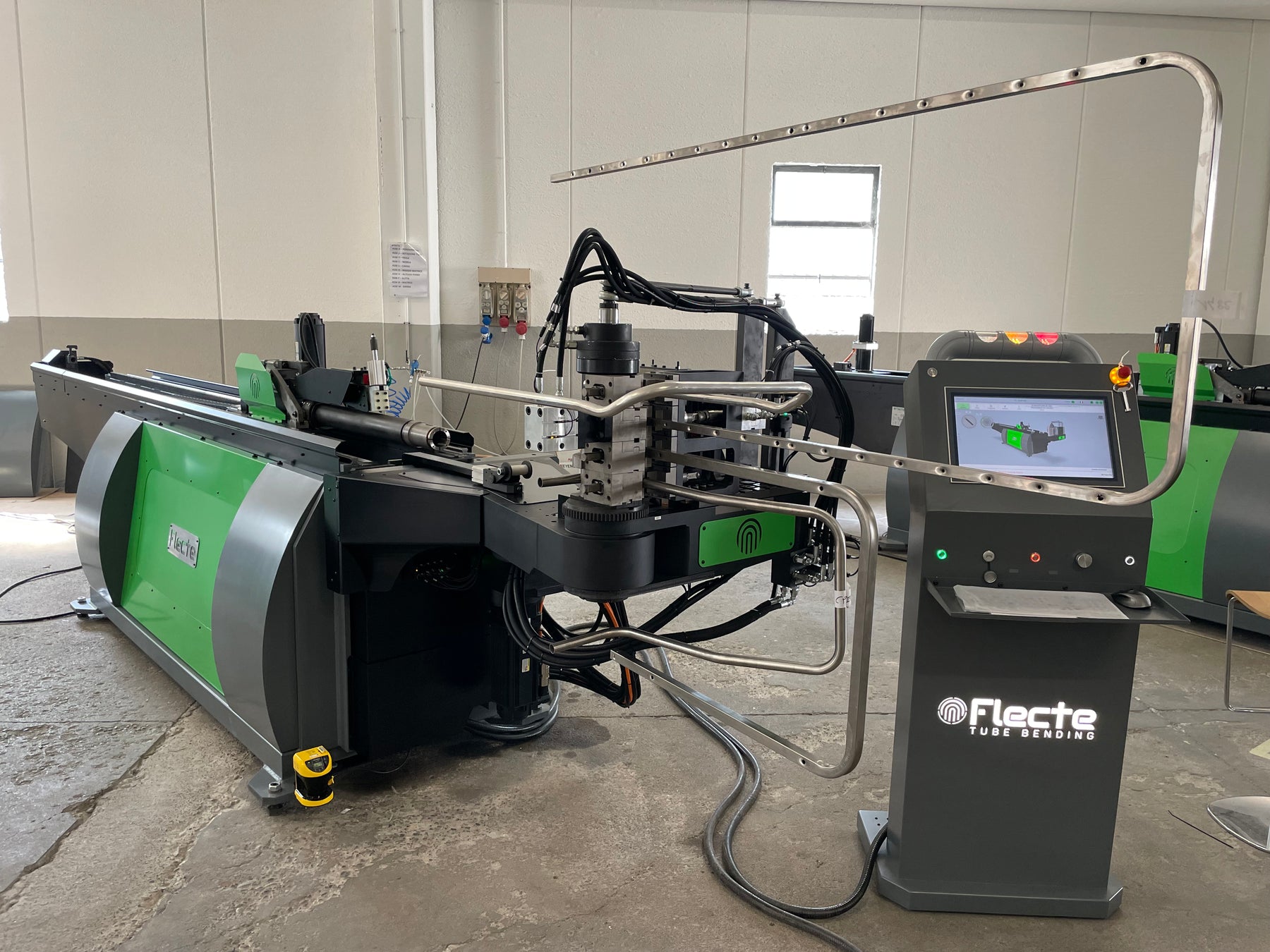

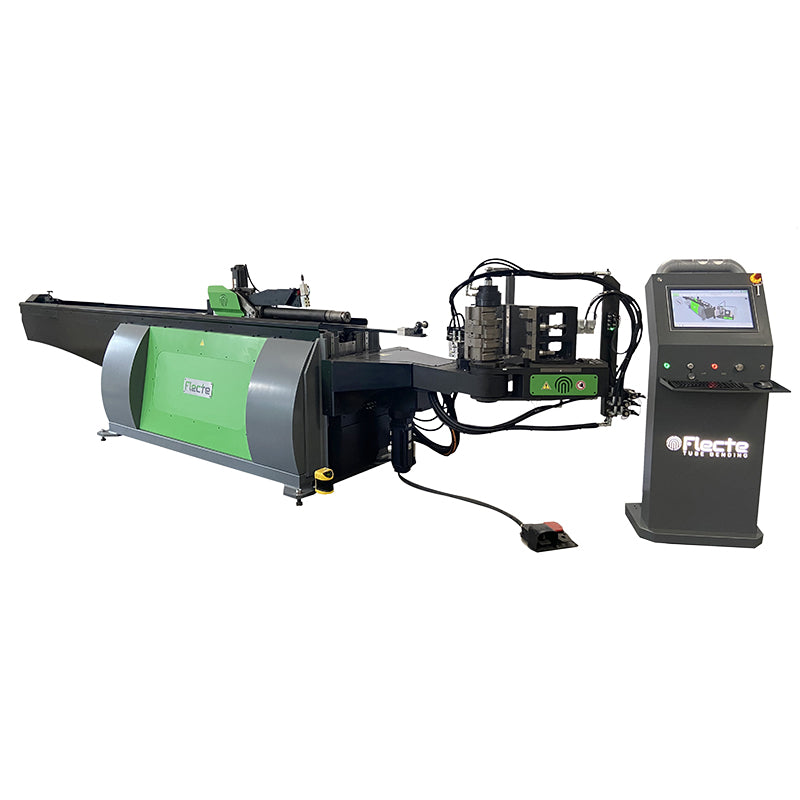

Flecte VEX 455 Tube Bending Machine – Precision Hybrid CNC Tube Bending

The Flecte VEX 455 is a high-performance hybrid tube bending machine designed for precision mandrel bending and roll bending across various tube profiles. With 5 CNC-controlled axes and multiple stack capability, this versatile machine delivers exceptional accuracy, fast cycle times, and maximum repeatability for industrial tube fabrication.

Key Features & Benefits:

✔ Hybrid Bending Technology – Combines mandrel and roll bending for maximum flexibility.
✔ Multiple Stacks – Supports complex bending sequences with multiple tool stacks.
✔ 5 CNC Axes – Ensures high precision and efficiency in automated tube bending.
✔ Wide Tube Capacity – Bends tubes up to 45mm (1.77 inches) in diameter.
✔ High-Speed Bending – Up to 200°/sec for increased productivity.
✔ Precision & Repeatability – Achieves 0.05° bending accuracy for consistent results.

Technical Specifications:

Machine Dimensions:

• Width (R=0): 53.9 inches
• Length: 214.6 inches
• Height: 66.9 inches
• Weight: 5,512 lbs

Work Area & Bending Capabilities:

• Max Bending Radius: 10.4 inches
• Useful Length Over Clamp: 118.1 inches
• Useful Length Over Mandrel: 181.1 inches
• Working Height: 49 inches
• Under-Head Length: 39.4 inches

Performance & Speed:

• Bending Speed: 200°/sec
• Tube Movement Speed: 39.4 inches/sec
• Tube Rotation Speed: 375°/sec

Material Bending Capacity:

• Steel (Mandrel Bending): Ø1.77 x 0.12 inches
• Steel (Roll Bending): Ø1.57 x 0.12 inches
• Aluminum Alloy (Mandrel Bending): Ø2.36 x 0.09 inches
• Aluminum Alloy (Roll Bending): Ø2 x 0.08 inches

Why Choose the Flecte VEX 455?

The Flecte VEX 455 CNC tube bender is engineered for industries requiring precision, speed, and repeatability—from automotive and aerospace to furniture manufacturing and general metal fabrication. With advanced CNC control, versatile bending functions, and optimized efficiency, this machine is a top choice for small and large production runs alike.

Get a Quote Today

Enhance your production with the Flecte VEX 455 Tube Bending Machine. Contact us today for pricing, custom configurations, and expert consultation.
