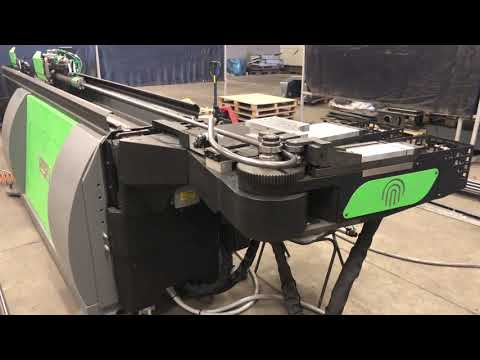

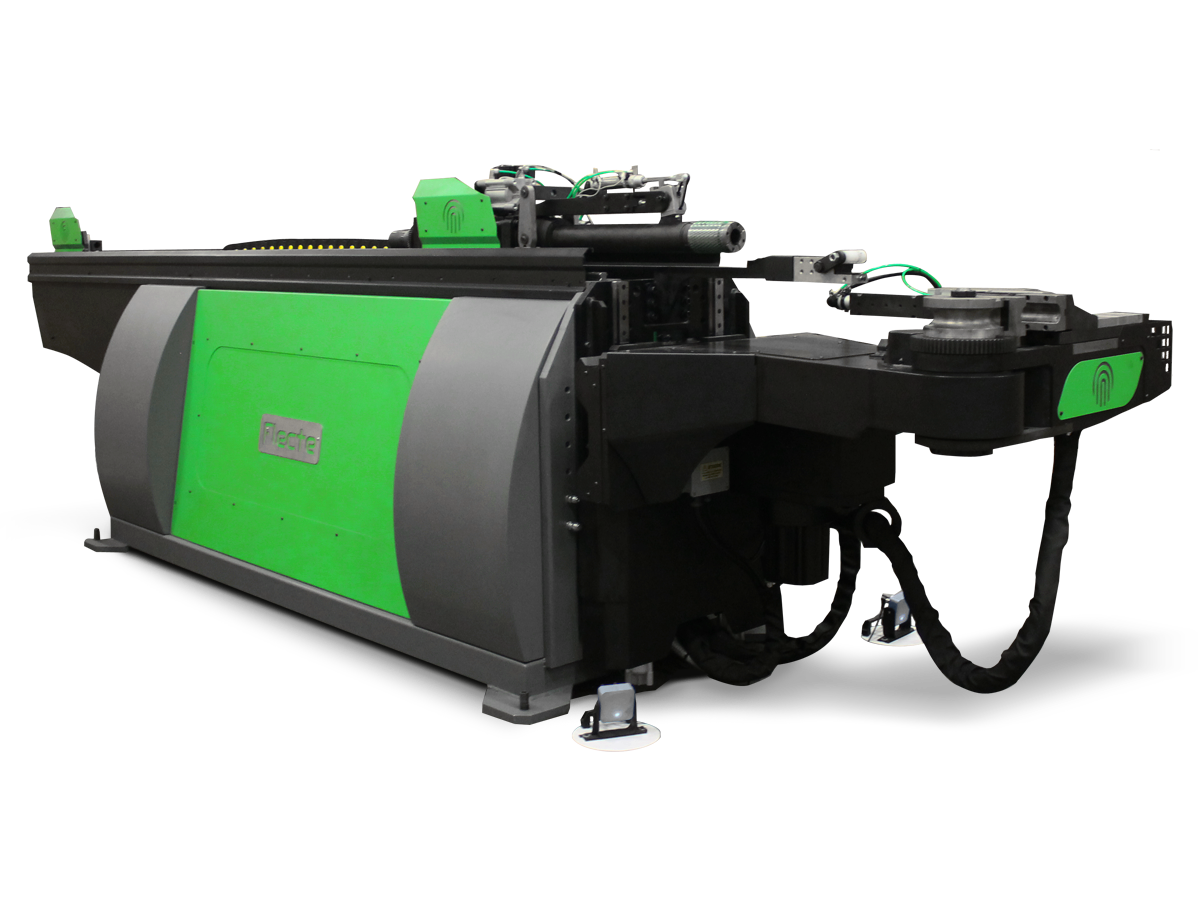

Flecte VEX 453 Tube Bending Machine – Precision CNC Hybrid Tube Bender

The Flecte VEX 453 is a high-precision hybrid tube bending machine designed for mandrel bending and roll bending of various tube profiles. Equipped with 3 CNC-controlled axes and a single stack, this machine delivers efficient, accurate, and repeatable tube bending for industrial applications.

Key Features & Benefits:

✔ Hybrid Bending Technology – Supports both mandrel bending and roll bending.
✔ 3 CNC Axes – Ensures precise control over tube movement and bending.
✔ Single Stack Design – Simplifies tooling setup while maintaining flexibility.
✔ Tube Capacity up to 45mm – Handles a variety of tube materials and thicknesses.
✔ High-Speed Bending – Achieves up to 200°/sec for faster cycle times.
✔ Exceptional Accuracy – Maintains 0.05° bending precision for repeatable results.

Technical Specifications:

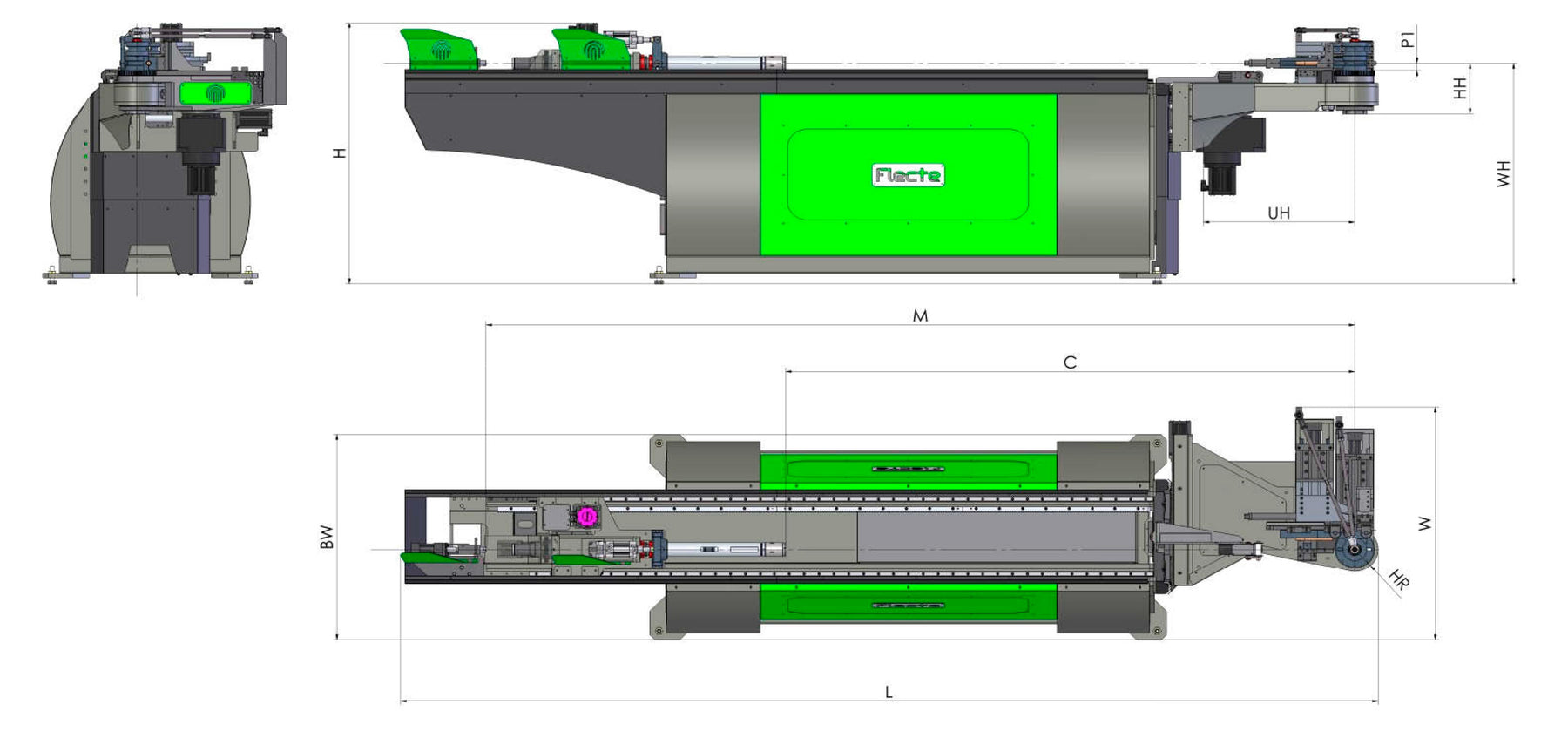

Machine Dimensions:

• Width (R=0): 53.9 inches
• Length: 214.6 inches
• Height: 66.9 inches
• Weight: 5,181 lbs

Work Area & Bending Capabilities:

• Max Bending Radius: 10.4 inches
• Useful Length Over Clamp: 118.1 inches
• Useful Length Over Mandrel: 181.1 inches
• Working Height: 49 inches
• Under-Head Length: 39.4 inches

Performance & Speeds

• Bending Speed: 200°/sec
• Tube Movement Speed: 36.4 inches/sec
• Tube Rotation Speed: 375°/sec

Material Bending Capacity:

• Steel (Mandrel Bending): Ø1.77 x 0.12 inches
• Steel (Roll Bending): Ø1.57 x 0.12 inches
• Aluminum Alloy (Mandrel Bending): Ø2.36 x 0.09 inches
• Aluminum Alloy (Roll Bending): Ø2 x 0.08 inches

Why Choose the Flecte VEX 453?

The Flecte VEX 453 CNC tube bender is an excellent choice for small to medium production runs, offering precise, repeatable bending with an efficient 3-axis system. Whether for automotive, aerospace, furniture, or general metal fabrication, this machine ensures high performance and cost-effective tube bending.

Get a Quote Today

Upgrade your production with the Flecte VEX 453 Tube Bending Machine. Contact us now for pricing, custom configurations, and expert consultation.
