SYMAXS AL Series High-Speed Aluminum Circular Sawing Machines

The SYMAXS AL Series consists of high-speed automatic circular sawing machines engineered for accurate, efficient and repeatable cutting of aluminum tubes, bars and profiles.

The SYMAXS AL Series is designed for manufacturers requiring high-volume aluminum cutting with excellent dimensional accuracy, repeatability and production efficiency.

A servo-controlled feeding system positions the material quickly and accurately, while hydraulic top and side vises securely clamp the material during cutting. The machines can process round, square and specially shaped aluminum profiles when equipped with the appropriate loading system and clamping jaws.

Three models are available to accommodate material diameters up to 160 mm.

Key Features

• High-speed automatic aluminum cutting

• Servo-controlled material feeding

• Hydraulic top and side clamping

• Adjustable cutting lengths up to 6,000 mm

• Automatic lubrication system

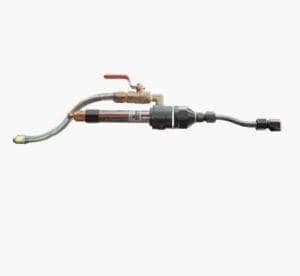

• Mist blade-lubrication system

• Integrated mist extraction

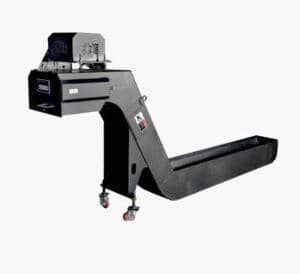

• Automatic chip conveyor

• Cut-part sorting system

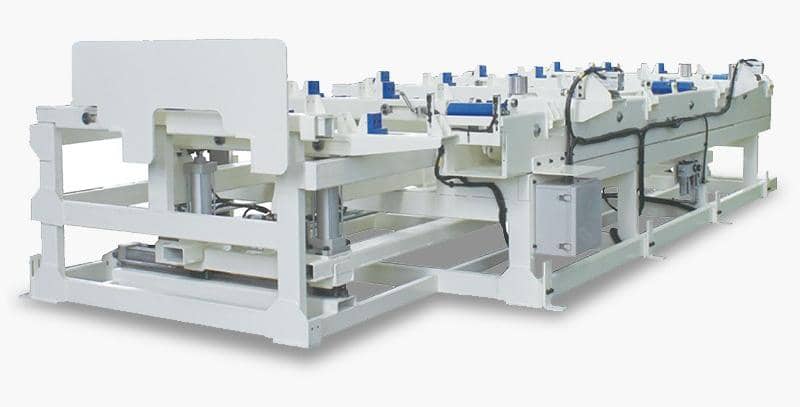

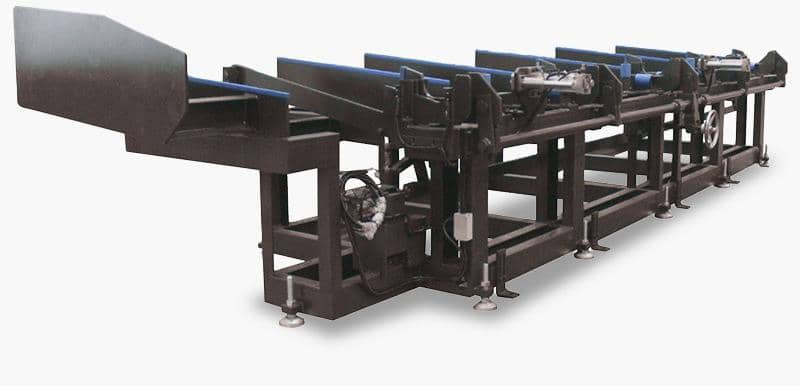

• Loading systems available for round, square and custom profiles

• Configurations available for 480 V, 60 Hz, three-phase power

• Installation, training and North American service available from Tubex Machinery

Available Models

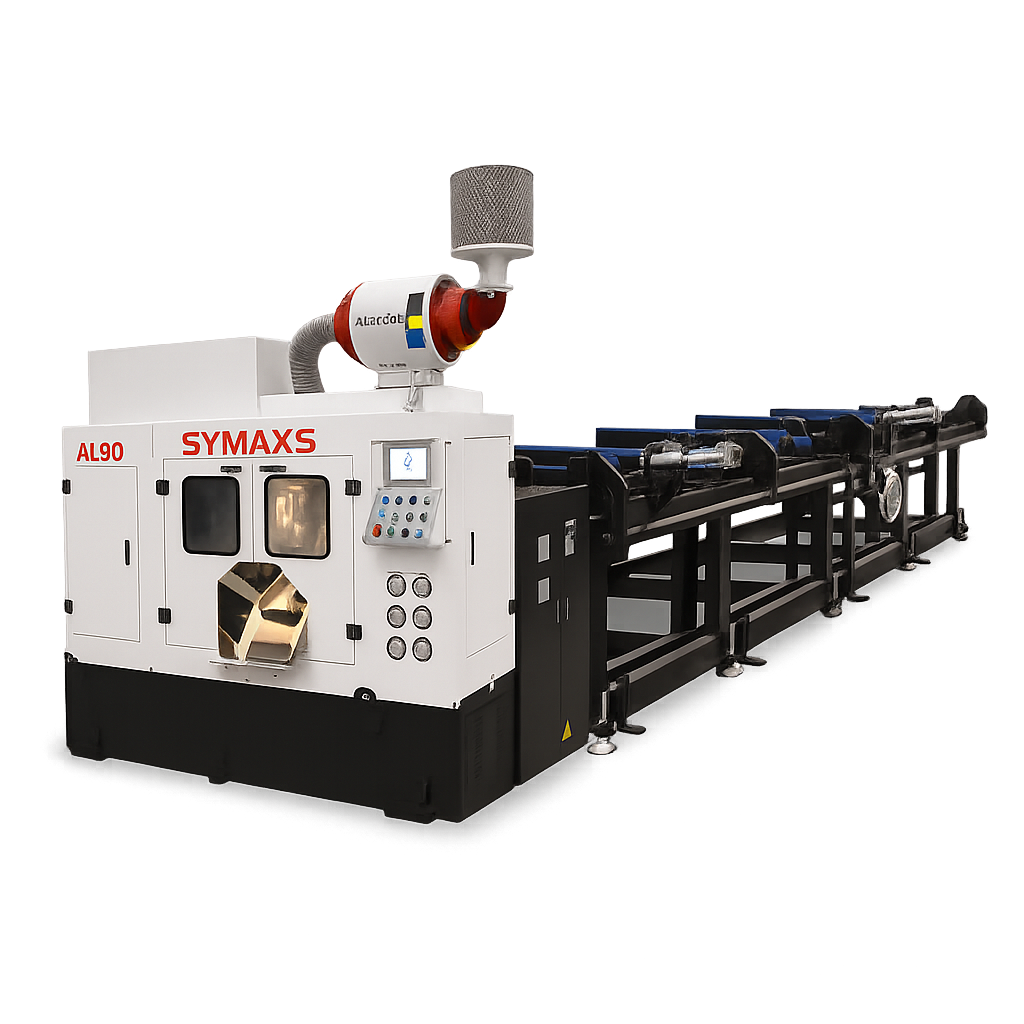

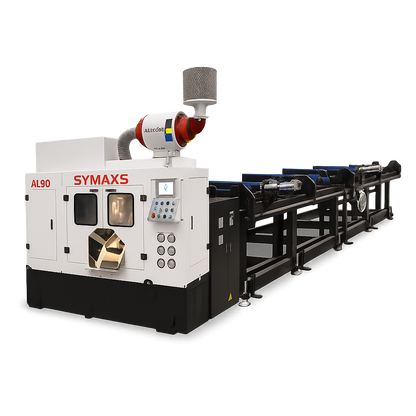

SYMAXS AL90

• Round cutting capacity: Ø10–90 mm

• Square cutting capacity: 63 mm

• Cutting length: 10–6,000 mm

• Blade size: Ø315 × 2.25 × 32 mm

• Main motor: 5.5 kW

• Feeding stroke: 700 mm

• Minimum trim cut: 10 mm

• Approximate machine weight: 4,000 kg

• Approximate dimensions: 2,910 × 8,040 × 2,850 mm

SYMAXS AL120

• Round cutting capacity: Ø20–120 mm

• Square cutting capacity: 85 mm

• Cutting length: 10–6,000 mm

• Blade size: Ø380 × 2.6 × 50 mm

• Main motor: 15 kW

• Feeding stroke: 800 mm

• Minimum trim cut: 10 mm

• Approximate machine weight: 5,500 kg

• Approximate dimensions: 3,376 × 8,281 × 2,880 mm

SYMAXS AL160

• Round cutting capacity: Ø80–160 mm

• Square cutting capacity: 110 mm

• Cutting length: 15–6,000 mm

• Blade size: Ø470 × 2.7 × 50 mm

• Main motor: 15 kW

• Feeding stroke: 600 mm

• Minimum trim cut: 15 mm

• Approximate machine weight: 6,000 kg

• Approximate dimensions: 3,391 × 8,265 × 2,979 mm

The SYMAXS AL160 can optionally accommodate round material down to Ø30 mm.

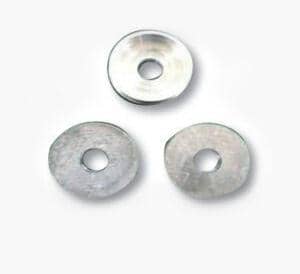

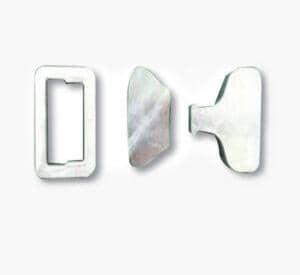

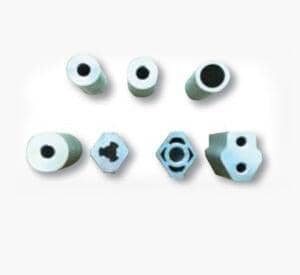

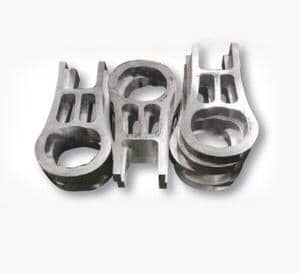

Applications
Suitable for high-production cutting of:

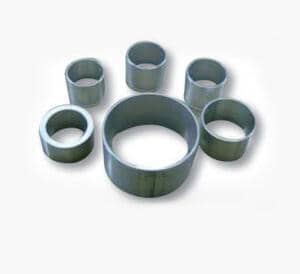

• Aluminum tubes

• Aluminum round bars

• Square and rectangular aluminum profiles

• Extrusions

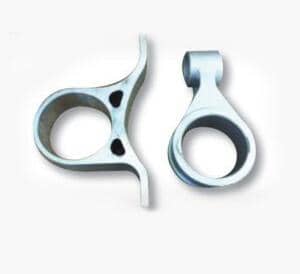

• Automotive components

• Heat-transfer components

• Furniture components

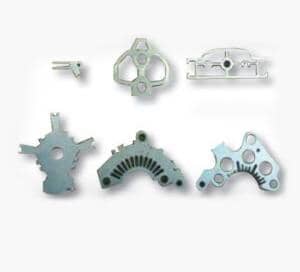

• Industrial aluminum parts

A Complete Turnkey Solution

Tubex Machinery can provide the machine as a complete turnkey system, including application review, loading-system configuration, electrical adaptation, CSA compliance, delivery, installation, commissioning, operator training and local technical support.

A production study can also be completed using the customer’s material drawings, required cut lengths and annual production volume.

Request a Quote

Send us your material specifications and production requirements for a complete cutting study and quotation.
