LT 200 S Tube Polishing

LT 200 S Tube Polishing

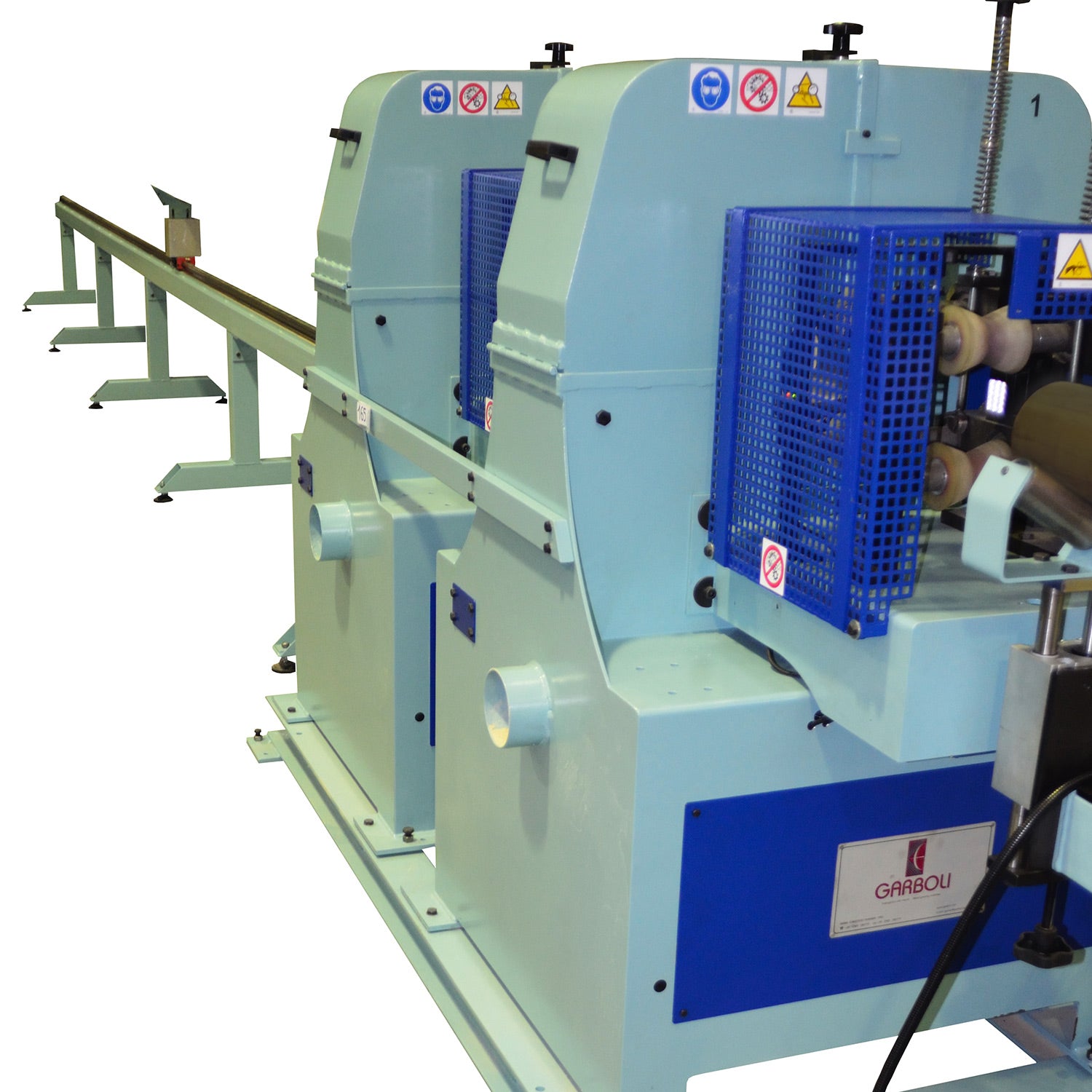

Garboli LT 200 S Tube Polishing Machine


D = 20-219mm   S = 2000mm    Disc = 2x2.2KW   1-20m/min
(8.6" max)            L = 120mm     Belt = 2x7.5kw

                                                  Feed = 3x.025kw

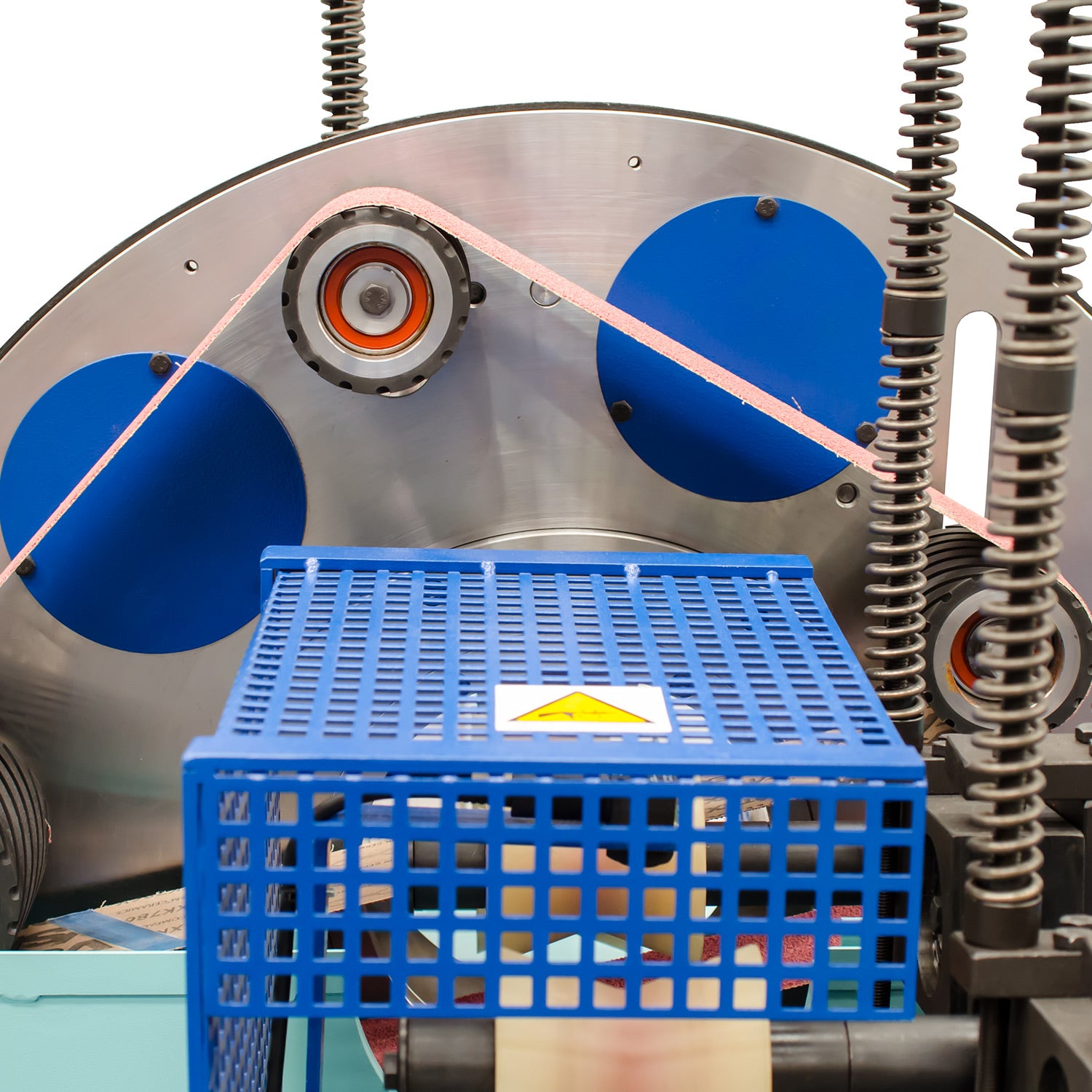

Orbital grinding line LT 200 S, with planetary grinding system, is consisting of two units with abrasive belts on a single base frame. The first unit enables rough tube grinding, while the second unit can achieve metal profile finishing on parts with round, oval, irregular and elliptical section made of stainless steel, iron, aluminum, brass or non ferrous metals

This line, extremely sturdy and reliable, can be fitted with many special equipment on request and is delivered ready to use with no need for further fittings. It is featured by self-centering front and rear powered feed systems, suitable for processing of taper parts with different diameter.
