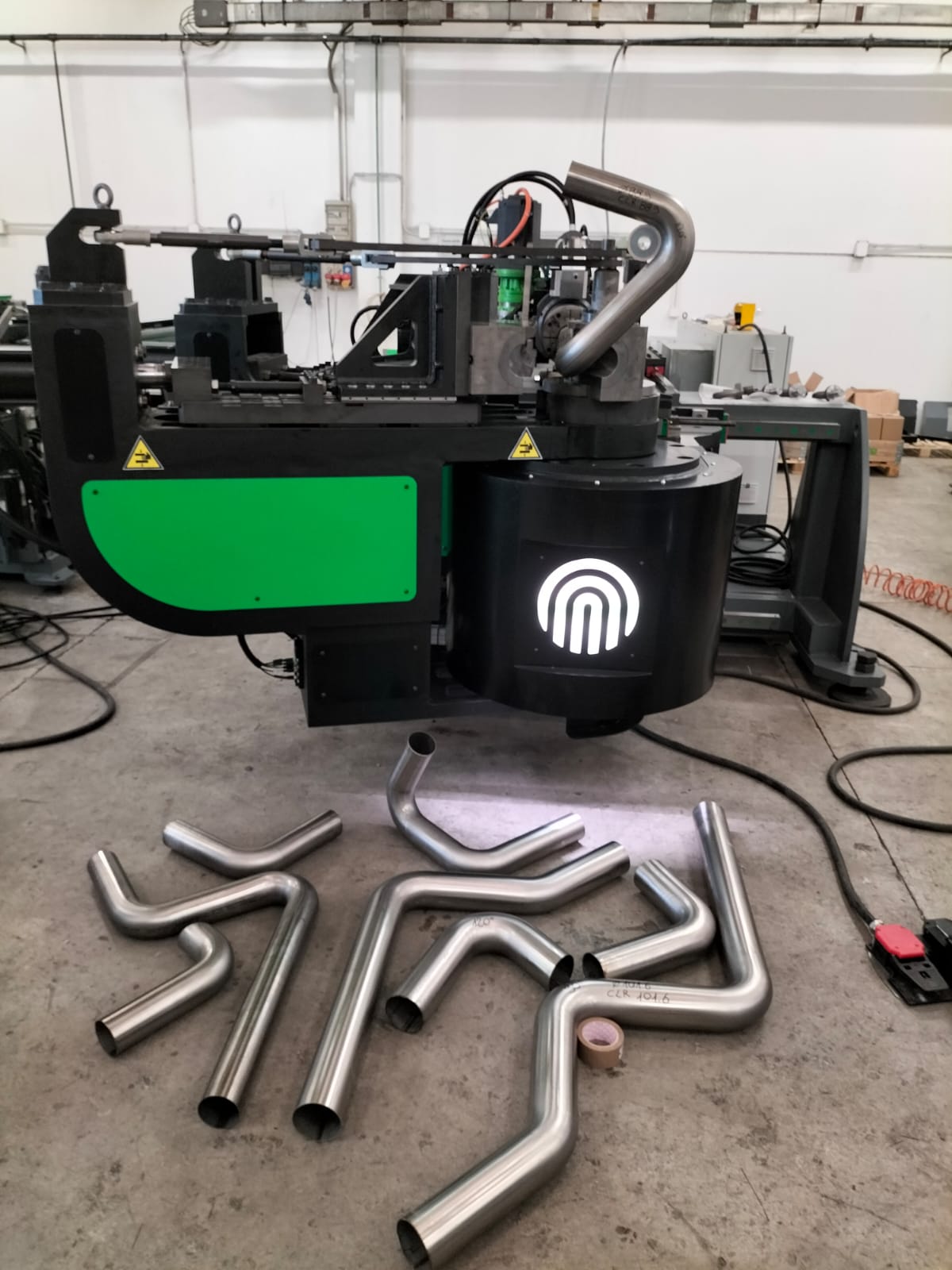

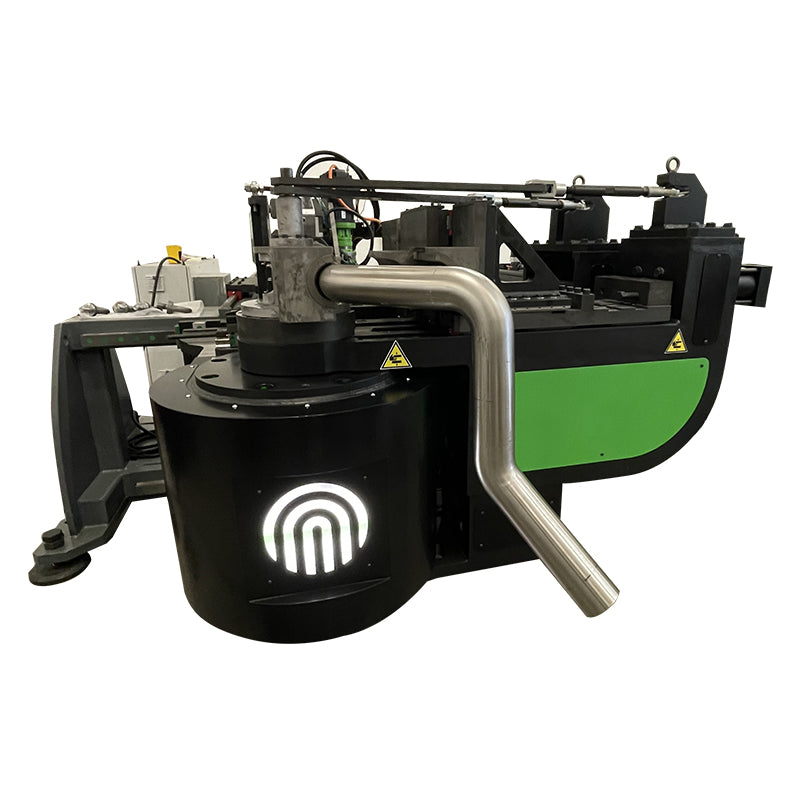

Flecte VEX 1505 – Advanced 5-Axis Hybrid Tube Bending Machine

The Flecte VEX 1505 is an advanced 5-axis CNC tube bending machine designed for high-precision mandrel and roll bending of tubes with various profiles, including round, oval, and elliptical shapes. With an impressive 150mm bending capacity, this hybrid tube bender integrates multiple stacks, hydraulic clamping, and high-speed electric axes for exceptional accuracy, flexibility, and efficiency.

Key Features & Benefits:

• Hybrid Bending Technology – Combines hydraulic clamping with electric precision axes for enhanced control and efficiency.
• Mandrel & Roll Bending – Supports both mandrel bending for precise control and roll bending for larger radii applications.
• 5 CNC-Controlled Axes – Ensures smooth, accurate, and repeatable bending.
• Multi-Stack Capability – Facilitates complex bends for a variety of tube profiles.
• Versatile Material Compatibility – Suitable for stainless steel, aluminum, iron, brass, and non-ferrous metals.
• Customizable Tooling Options – Adapts to diverse bending requirements for multiple industries.

Technical Specifications:

• Maximum Tube Capacity: 150mm diameter
• Electric Axes: 5 CNC-controlled axes for precision
• Bending Radius: 18.9 inches (HR)
• Maximum Power: 90 kW at 400V
• Bending Speed: 22°/sec for high-speed precision forming
• Material Compatibility: Stainless steel, aluminum, iron, brass, and non ferrous metals
• Mandrel Bending & Roll Bending Capabilities

Why Choose the Flecte VEX 1505 Tube Bending Machine?

✔ Optimized for bent tubes – Handles intricate geometries and multiple tube profiles with ease. ✔ High-precision tube bending – Achieves repeatability with 0.05° bending accuracy. ✔ Enhanced productivity – Fast CNC processing for high-volume tube bending operations. ✔ Multiple tooling stacks – Versatile bending capabilities for complex and multi-radius bends. ✔ Energy-efficient hybrid system – Reduces energy consumption while maximizing bending force. ✔ Wide range of applications – Ideal for automotive, aerospace, construction, and industrial applications.

Industries Served:

• Automotive – Bending tubes for exhaust, roll cages, and chassis components.
• Aerospace & Aviation – Ensuring precision bends for aircraft structures.
• Shipbuilding & Marine – Durable tube bending for shipbuilding and marine equipment.
• Industrial Manufacturing – Perfect for hydraulic tubing, pipelines, and heavy machinery.

Maximize Productivity with the Flecte VEX 1505 Tube Bending Machine Get unmatched performance, precision, and flexibility with Flecte VEX 1505. Whether you need mandrel bending or roll bending, this hybrid 5-axis tube bending machine delivers superior bending accuracy and efficiency. Contact Tubex Machinery today to learn more or request a quote!
