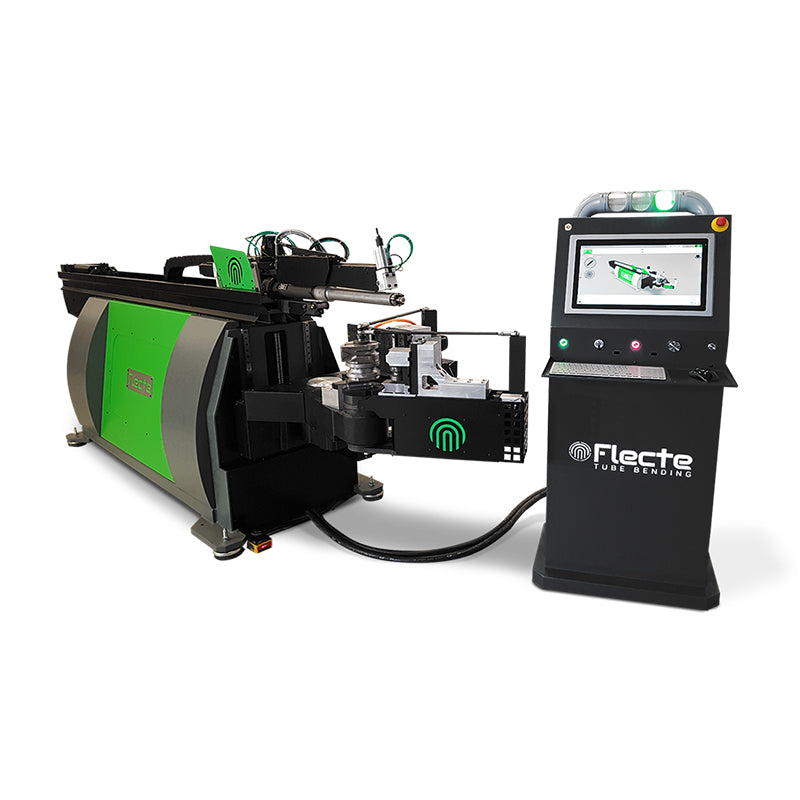

Flecte VEX 259 Electric Tube Bending Machine

The Flecte VEX 259 Electric Tube Bending Machine is a state-of-the-art full electric CNC tube bending system designed for precision, efficiency, and versatility. Featuring 9 CNC axes, this multi-stack machine is built to handle a variety of tube profiles, providing both mandrel bending and roll bending capabilities.

Key Features:

• Fully Electric Operation: Enhances precision, reduces maintenance, and ensures energy efficiency.
• Multi-Stack Bending: Allows for complex bending sequences and increased production flexibility.
• 9 CNC Axes: Delivers high-precision movement and control for optimal bending performance.
• High-Speed Performance: Fast bending, tube rotation, and movement speeds for maximum productivity.
• Superior Accuracy: Bending precision up to 0.05° and tube movement accuracy of 0.0020 inches.
• Compact Design: Optimized footprint for better space utilization in manufacturing environments.

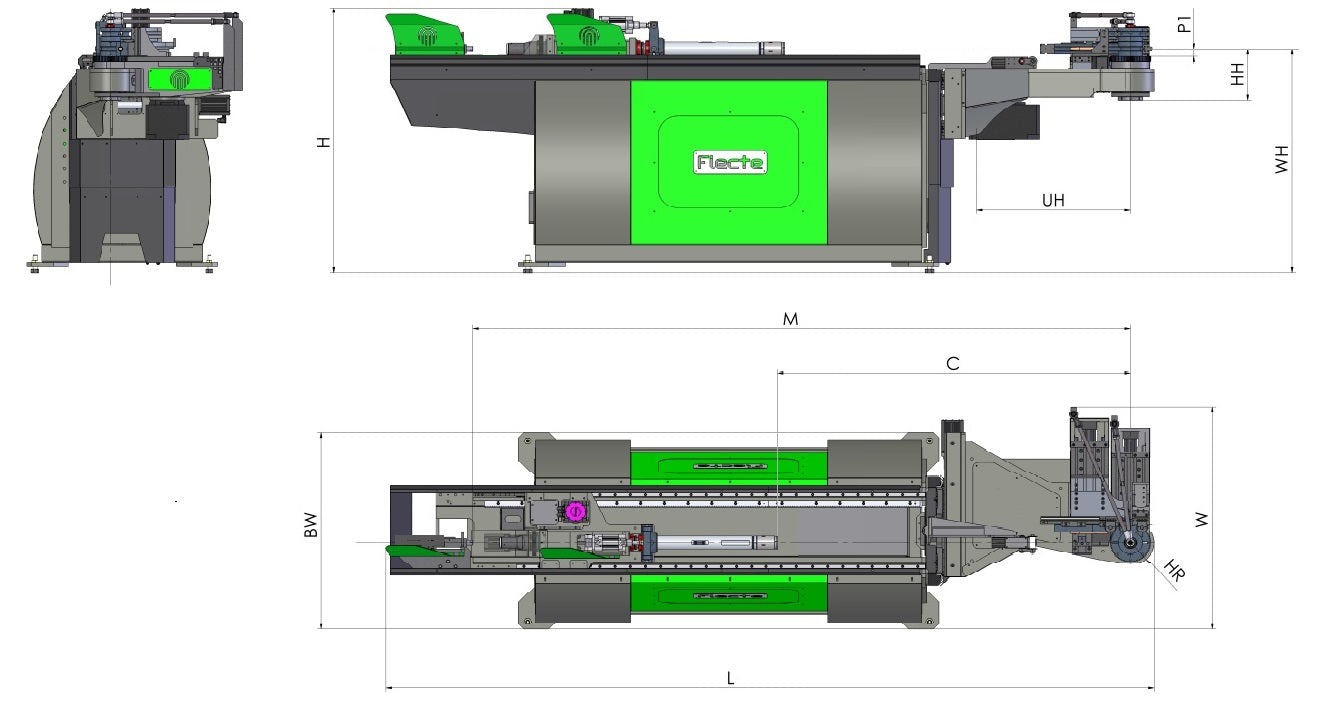

Technical Specifications:

• Capacity: 25mm (1 inch)
• Maximum Bend Radius: 5.9 inches
• Useful Length Over Clamp: 59.1 inches
• Useful Length Over Mandrel: 118.1 inches
• Bending Head Radius: 3.5 inches
• Maximum Power: 10 kW
• Voltage: 400V
• Machine Weight: 3748 lbs

Speed:

• Bending Speed: 300°/sec
• Tube Movement Speed: 49.2 inches/sec
• Tube Rotation Speed: 700°/sec
• Offset Speed: 23.6 inches/sec
• Stacking Speed: 11.8 inches/sec
• Mandrel Speed: 8.3 inches/sec
• Following Block Speed: 19.7 inches/sec

Precision:

• Bending: 0.05°
• Tube Movement: 0.0020 inches
• Tube Rotation: 0.05°
• Offset: 0.0020 inches
• Stacking: 0.0020 inches
• Mandrel: 0.0020 inches

Bend Capacity:

• Iron Tube with Mandrel: 1 x 0.08 inch
• Iron Tube Roll Bending: 0.79 x 0.08 inch
• Aluminum Alloy Tube with Mandrel: 1.18 x 0.08 inch
• Aluminum Alloy Tube Roll Bending: 1 x 0.08 inch

Why Choose the Flecte VEX 259?

The Flecte VEX 259 is engineered for manufacturers requiring precision tube bending with maximum efficiency. Whether you are working in automotive, aerospace, furniture, or industrial applications, this machine delivers high-speed production, unmatched accuracy, and superior durability.

Upgrade your tube bending operations with the Flecte VEX 259 – Contact us today for more details!
