Flecte VEX 1205 Tube Bending Machine – 5 CNC Axes for Precision Bending

The Flecte VEX 1205 is a high-performance CNC tube bending machine designed for complex and demanding bending applications. With 5 CNC-controlled axes, this hybrid machine combines mandrel bending and roll bending for precise and versatile tube forming. Capable of handling multiple stack tooling, the VEX 1205 is ideal for bending a wide variety of tube profiles with accuracy and efficiency.

Key Features & Benefits:

• Hybrid Tube Bending: Supports mandrel and roll bending, ensuring flexibility for different tube profiles and applications.
• Multi-Stack Capability: Accommodates multiple tooling stacks for increased bending versatility.
• High Precision: Advanced CNC controls provide exceptional bending accuracy, minimizing material waste.
• Heavy-Duty Performance: Built to handle large-diameter tubes with ease, making it ideal for industrial and manufacturing applications.
• Efficient Workflow: Fast bending speeds and optimized tube positioning increase productivity.

Technical Specifications:

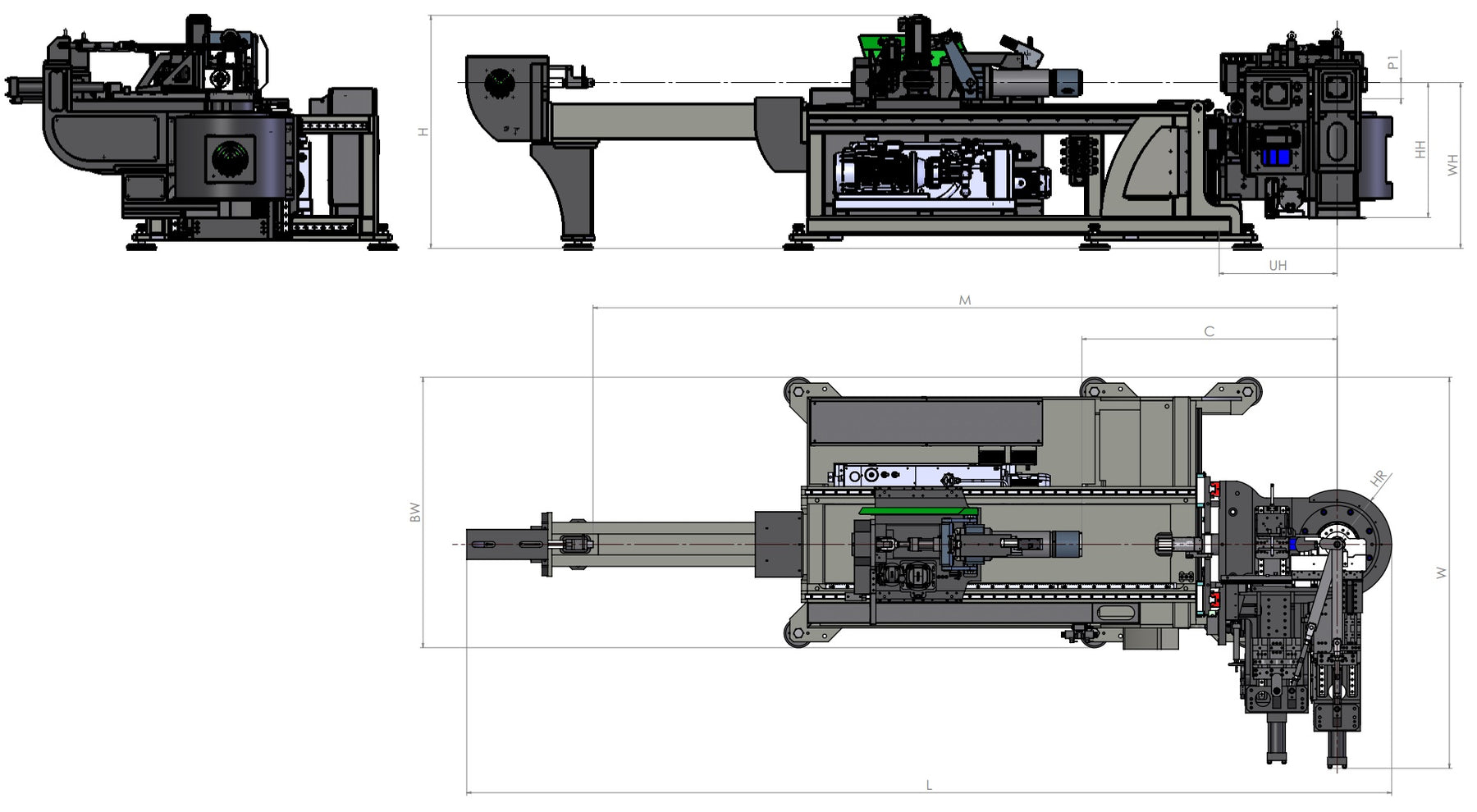

Machine Dimensions & Build:

• Width at R=0: 124 in
• Length: 332.7 in
• Basement Width: 82.7 in
• Height: 78.7 in
• Weight: 35,274 lbs

Bending Capabilities:

• Useful Length Over Clamp: 118.1 in
• Useful Length Over Mandrel: 248 in
• Working Height: 56.3 in
• Under-Head Length: 39.4 in
• Bending Head Radius: 18.5 in
• Maximum Bend Radius: 19.7 in

Electrical & Performance Data:

• Maximum Power: 70 kW
• Voltage: 400V

Bending Speed: 32°/sec

• Tube Movement Speed: 17.3 in/sec
• Tube Rotation Speed: 200°/sec
• Tube Offset Speed: 7.9 in/sec
• Tube Stack Speed: 2.4 in/sec

Precision & Accuracy:

• Bending Precision: 0.05°
• Tube Movement Precision: 0.0020 in
• Tube Rotation Precision: 0.05°
• Tube Offset Precision: 0.0020 in
• Tube Stack Precision: 0.0020 in

Bend Capacity:

• Max Iron Tube (Mandrel Bending): 4.77 in x 0.08 in
• Max Iron Tube (Roll Bending): 3.15 in x 0.12 in

Why Choose the Flecte VEX 1205?

• Designed for Large-Diameter and Complex Bends: Handles heavy-duty tube bending with ease.
• Advanced CNC Control: Ensures precision, repeatability, and efficiency in every bend.
• Reliable for Industrial Applications: Trusted by manufacturers in automotive, aerospace, and metal fabrication industries.
• Flexible Hybrid System: Combines mandrel bending and roll bending for a broad range of tube shaping requirements.

Get the Best in CNC Tube Bending

The Flecte VEX 1205 is the perfect choice for manufacturers looking to improve tube bending efficiency while maintaining high accuracy and repeatability. Contact us today to learn more about how this cutting-edge tube bending machine can optimize your production process.
